The Best Volume Control X 2
With a dynamic range of -112dB, industry aristocrats like Pass Labs and AVM swear by the MUSES72320 + discrete buffer volume control.
We go further by using one per channel, eliminating channel cross-talk and enabling stereo crossfeed and balance adjustments.
Enjoy your Music in Perfect Balance and Blend
The Voyager provides selectable hardware-based crossfeed for headphones and soundstage balancing for speakers, and it even offers a headphone+subwoofer listening mode.
Whether you’re listening through headphones or speakers, these features allow you to enjoy your favourite tracks just as you prefer.
Fusion. Clean and limitless power!
This power supply unit is a must-have upgrade for the Soloist Voyager!
The Fusion Core uses GaN transistors that operate at frequencies ten times higher than traditional silicon MOSFETs, providing superior noise filtering. This advanced technology allows the Fusion Core to deliver ultra-low noise DC power with a robust current pump circuit, offering up to 480W. It is the audio industry’s most advanced power supply, with a matching sleek look.
Switching Frequency
A | B | C | D |
---|---|---|---|
Measurement | Package Content | ||
Input impedance: | 38 KOhms | Soloist Voyager (V-220) | |
Frequency response: | ± 1 dB 0 – 48Khz | Remote Control | |
THD: | <0.0015% | With SP02 power modules installed | |
Output impedance (Headphone Amp): | 0.5 Ohm | Standard / Deluxe - 24V5A PSU / Super Charger 5A | |

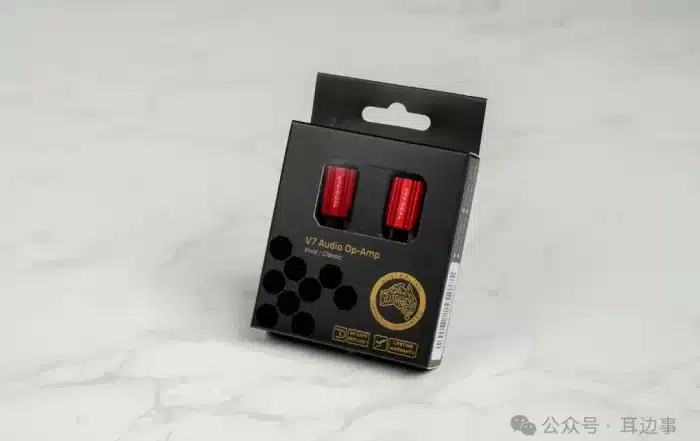

Output impedance (Pre Out ): | 25 Ohm | Standard / Deluxe - V6 Vivid / V7 Vivid Pro Audio Opamps | |
Regional Power Cable | |||
Soloist Voyager Info | |||
Inputs: | 2 x XLR2 x RCA1 x Mic Bypass | Weight: | App. 7 kg (15.5Pounds) |
Outputs: | 1 x XLR Preamp1 x RCA Preamp1 x RCA Subwoofer Output1 x XLR Headphone Jack1 X SE Headphone Jack | Dimensions: | 265 x 270 x 85 mm (10.2 x 10.6 x 3.3 inches) |
Impedance (Headphone Jack) | Power XLR / SE | Signal to Noise Ratio | Separation |
16 Ohm | 10 / 5W | 116db | 99% |
32 Ohm | 8 / 4W | 111db | 99% |
100 Ohm | 3.8 / 1.9W | 110db | 99% |
150 Ohm | 1.3W / 0.65W | 110db | 99% |
300 Ohm | 0.64 / 0.32W | 109db | 99.50% |
