3 is a Party!

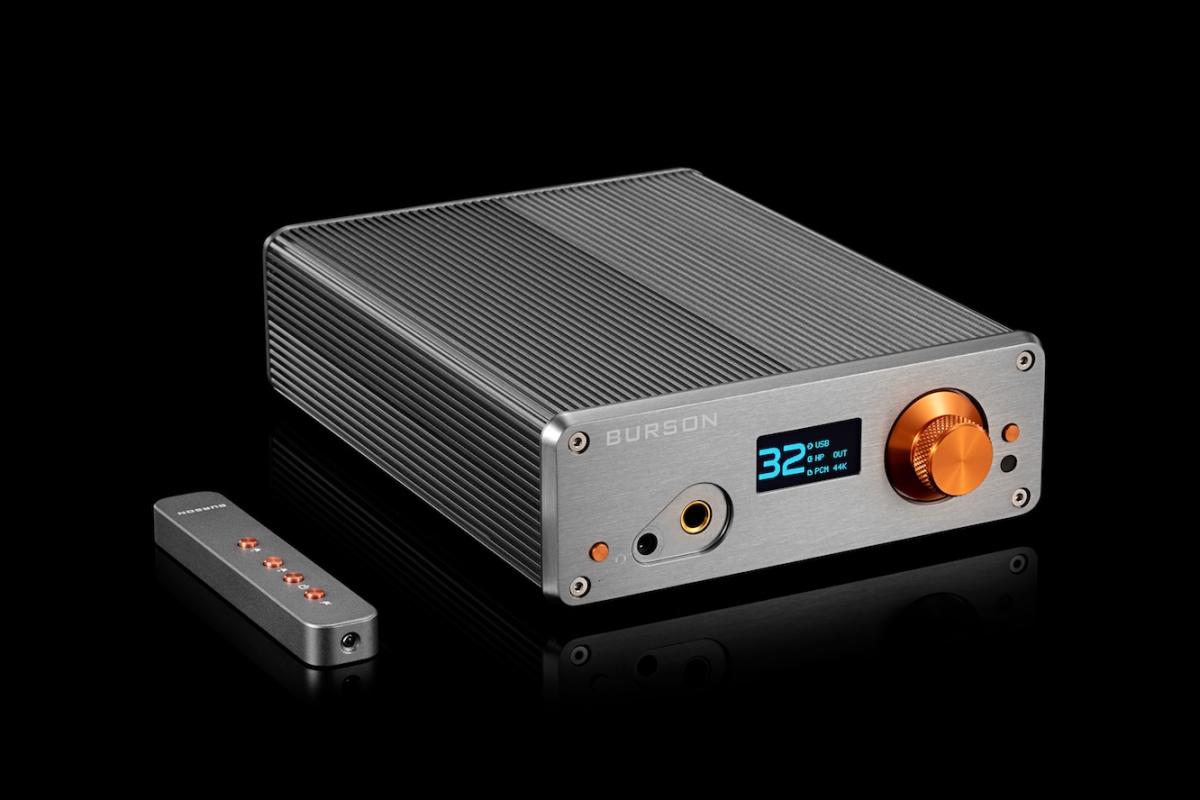

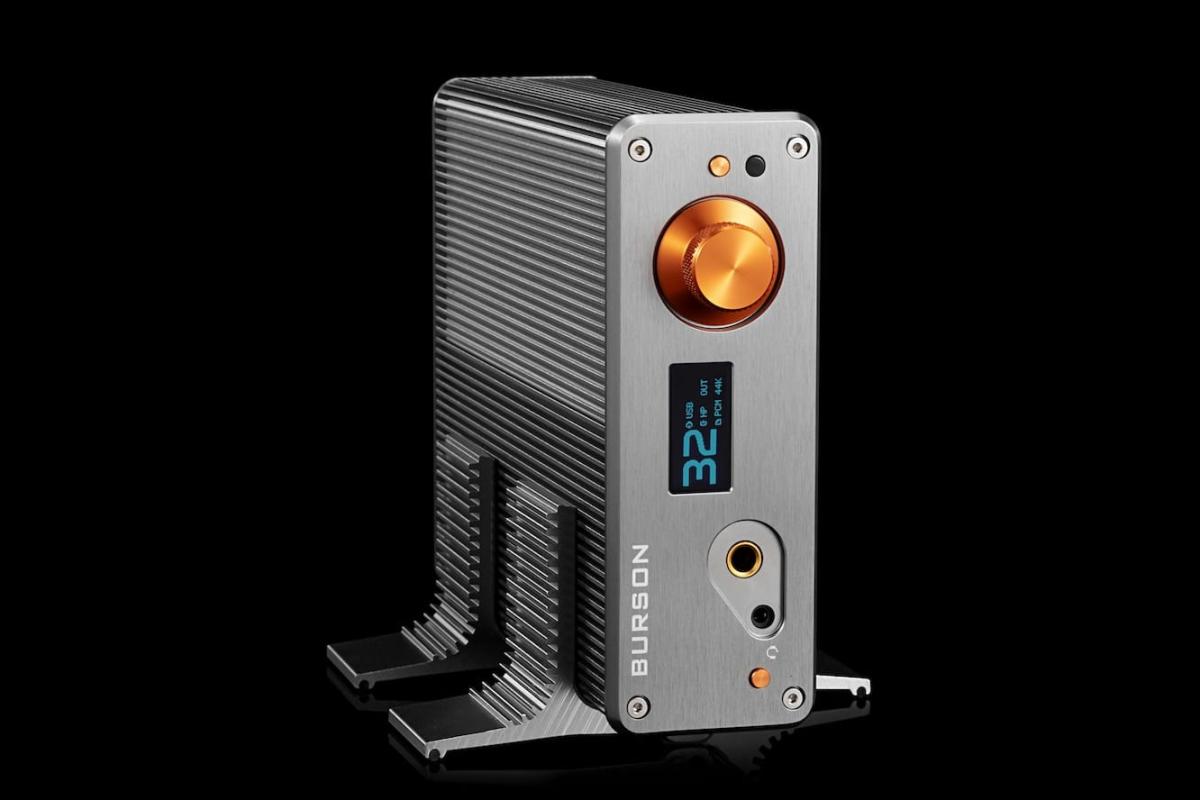

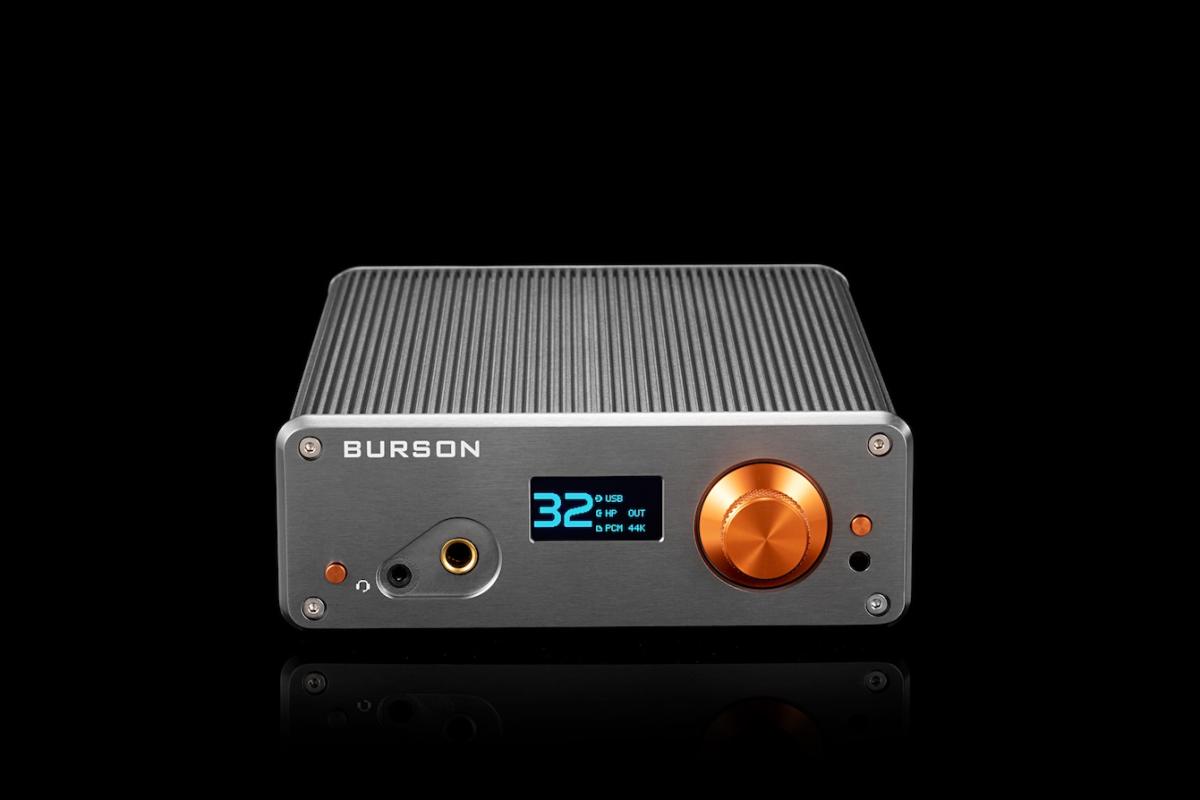

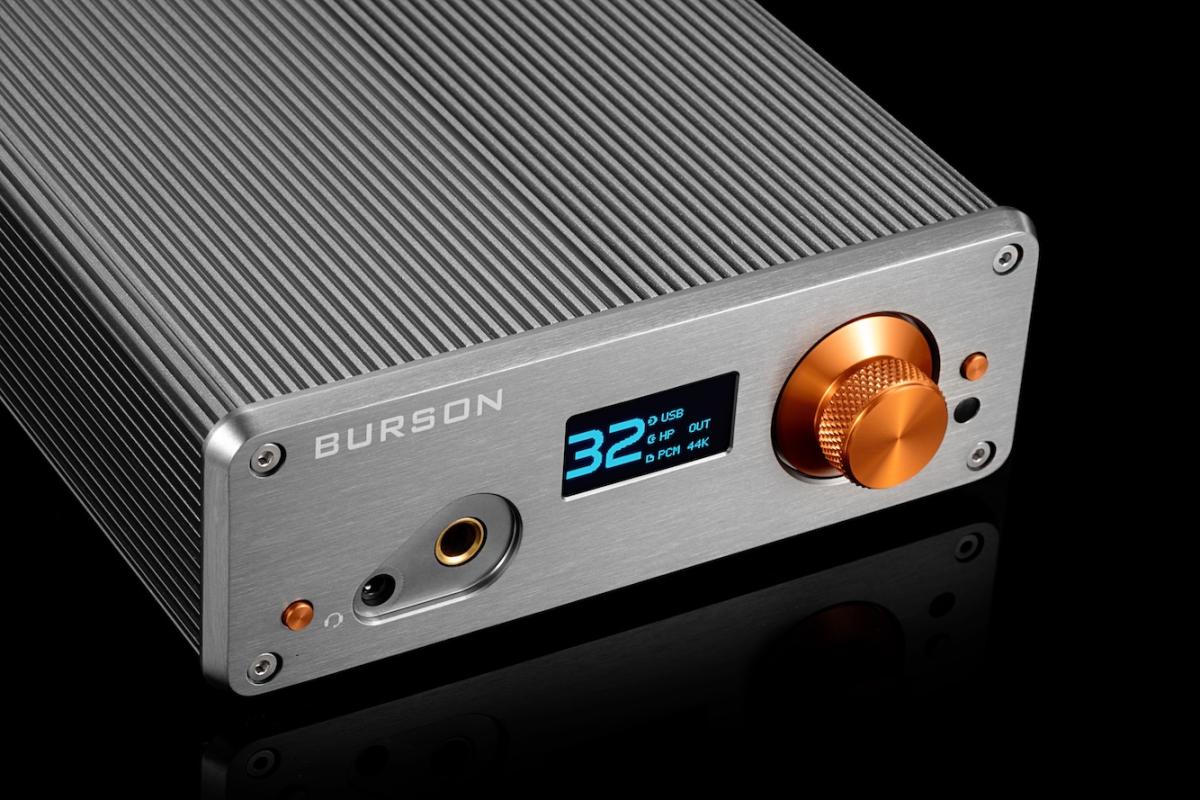

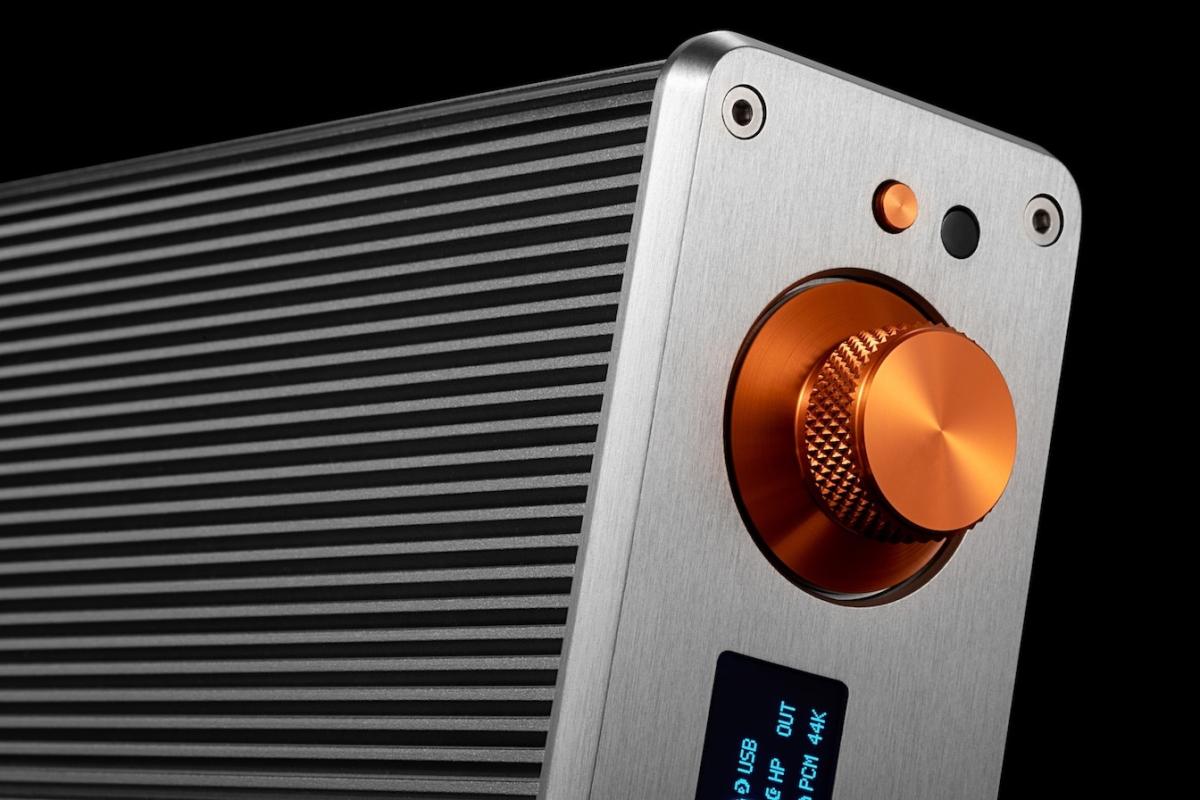

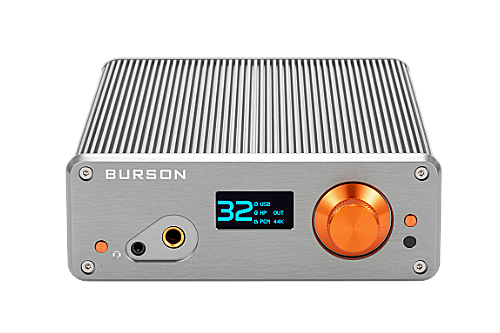

With its sleek design and powerful performance, the Playmate 3 combines a high-performance ESS9039 DAC with 768kHz and DSD512 capability, a high-current headphone amp, and a remote-controlled preamp—delivering an exceptional listening experience.

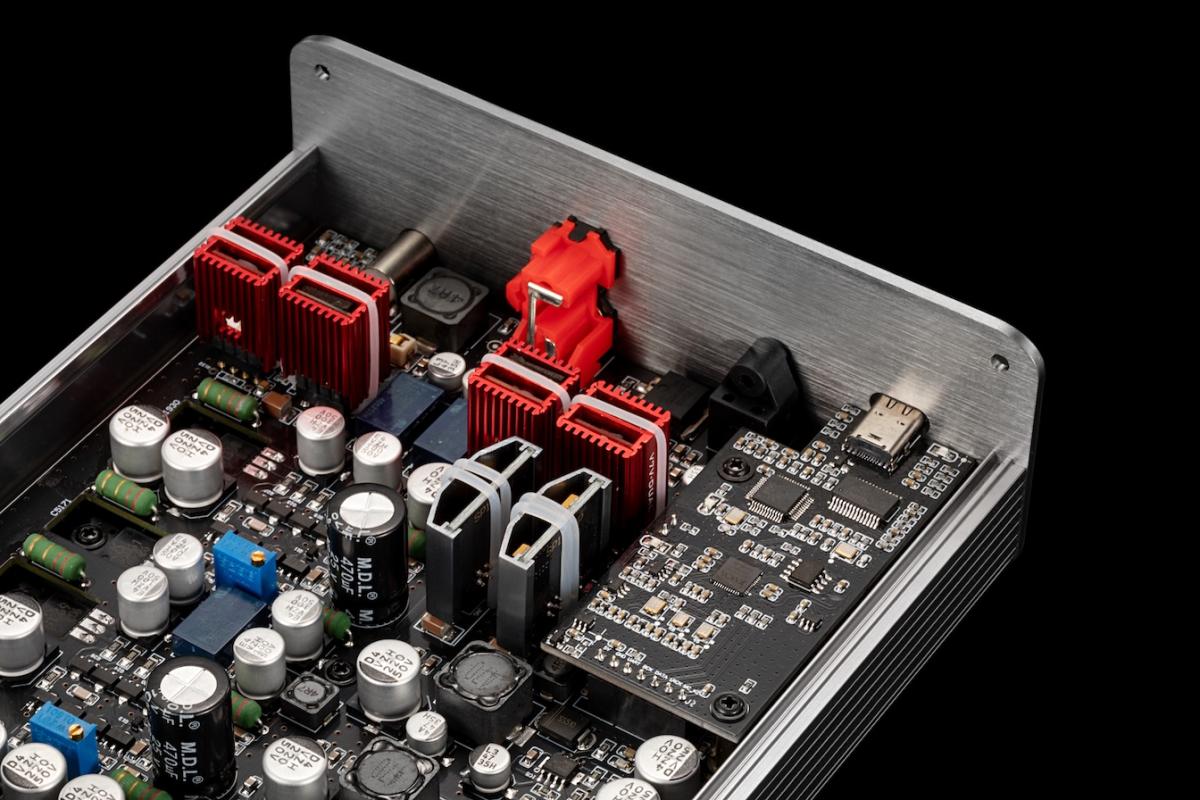

The Playmate 3 packs the same high-performance DNA as our flagship Conductor GT4! With the same advanced DAC output stage, single-ended headphone amplifier, and support for opamp rolling and Silent Power module upgrades, it delivers flagship-level performance in every detail.
3 is here to thrill!

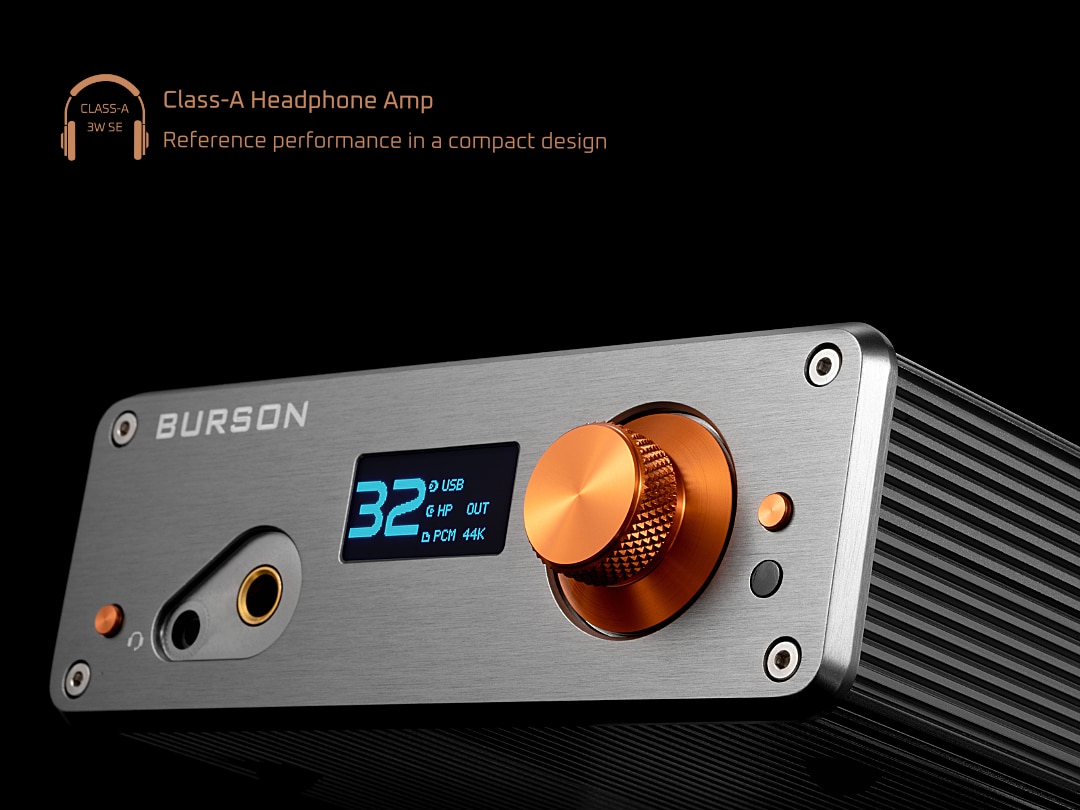

The Playmate 3 operates at a 30W idling bias, delivering 3 watts per channel with precise Class-A audio and robust power, thanks to our Max Current Power Supply.
Connect Them All.

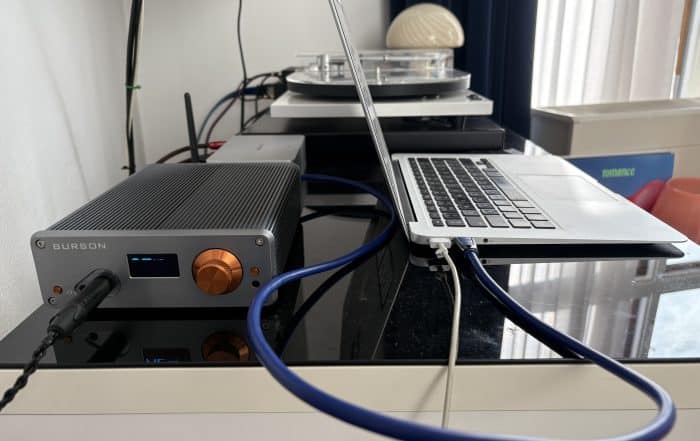

Easily connect the Playmate 3 to phones, laptops, or streamers via XMOS USB-C, supporting native DSD512 and 32-bit/768kHz audio. Additionally, it’s Roon Tested, ensuring seamless connectivity with Roon Ready devices.
Fun and Games.

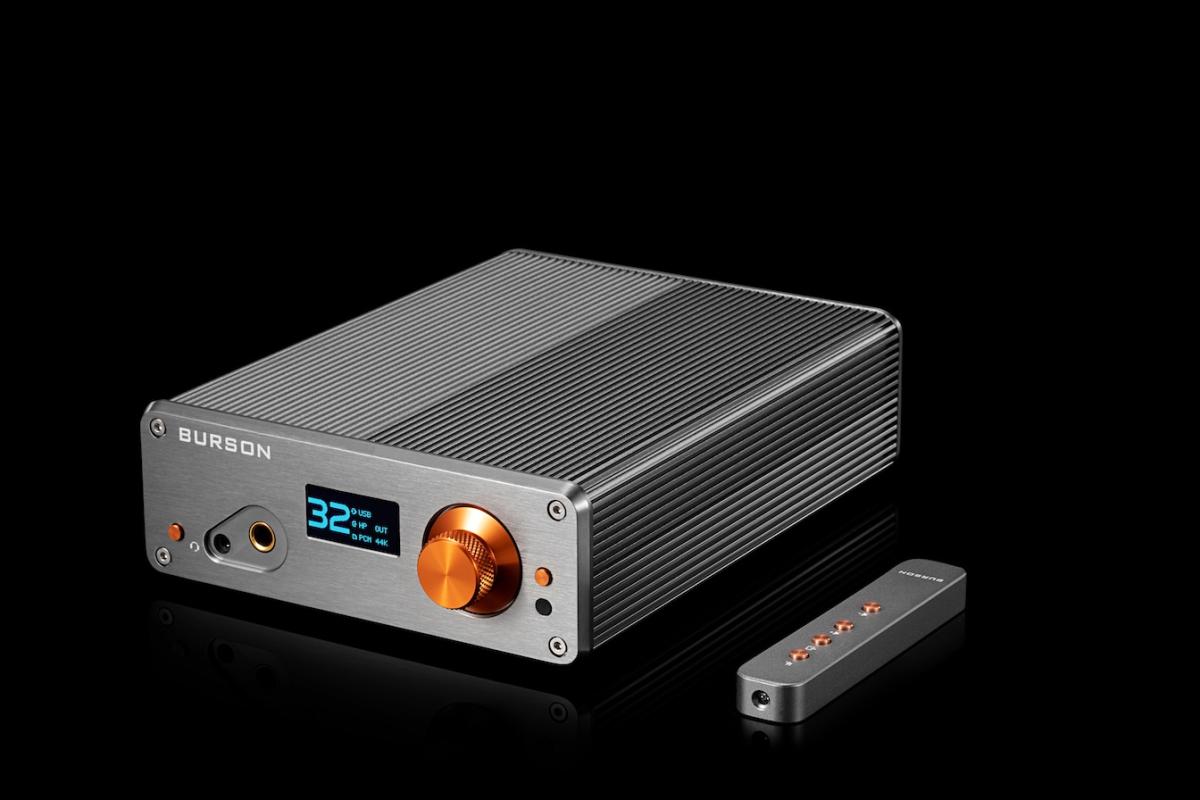

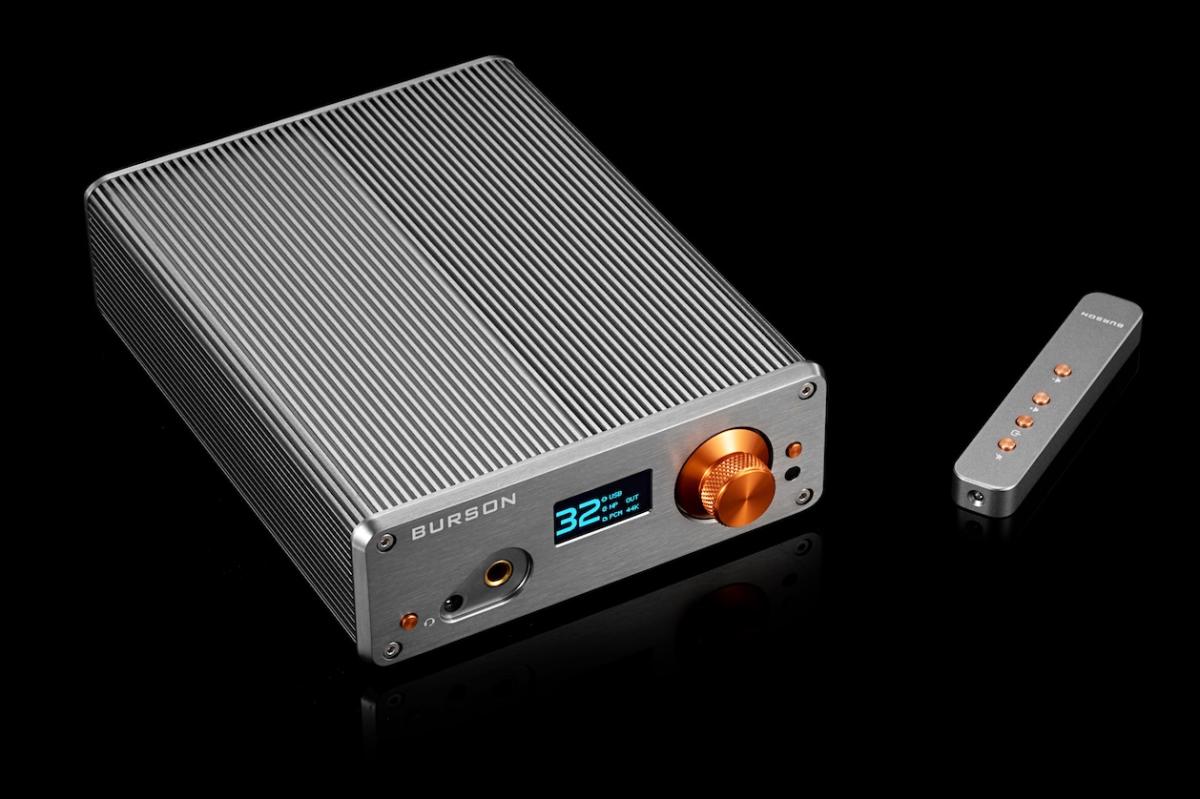

HD mic input for PC gaming, optical input for gaming consoles, and optional remote preamp for movie nights. Sounds good whatever you do.
Quieter Than Battery Power

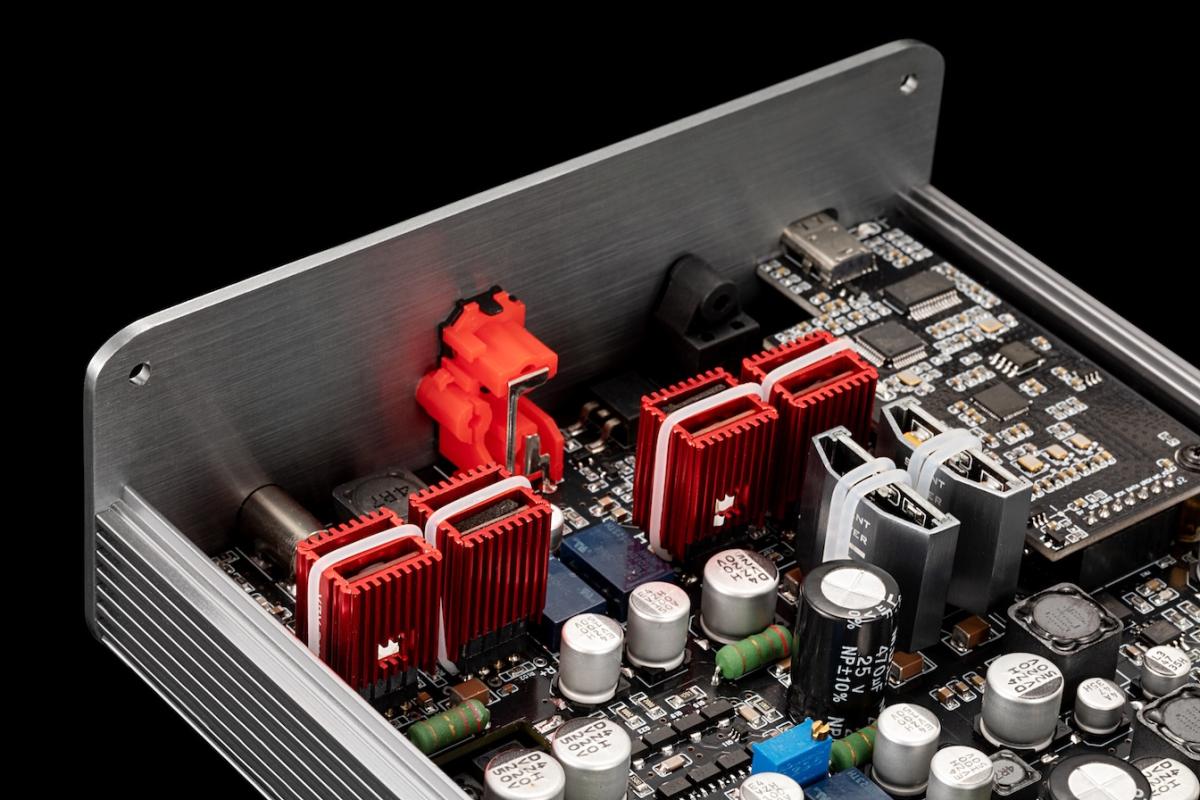

To reproduce your favourite songs with perfect clarity, you need clean DC power. The Playmate 3 features the Burson Silent Power (SP) Modules, each with a noise filtering rate over 200 times better than standard regulators. This ensures every tiny detail in your music is crystal clear and noise-free.
Noise Level
Super Charge or Go Fusion!
The Playmate 3’s performance elevates with an upgraded power supply. The Burson Super Charger operates at a higher frequency than conventional units, reducing DC noise and enhancing the signal-to-noise ratio. The Burson Fusion Core, powered by advanced GaN transistors operating above 1 MHz, provides up to 480W, making it one of the most advanced power supplies in audio—with a striking design.
These optional upgrades further reduce DC noise, allowing for a deeper exploration of micro-details, revealing more texture, decay, and acoustic nuances between instruments and vocals.
Switching Frequency
Playmate your way!

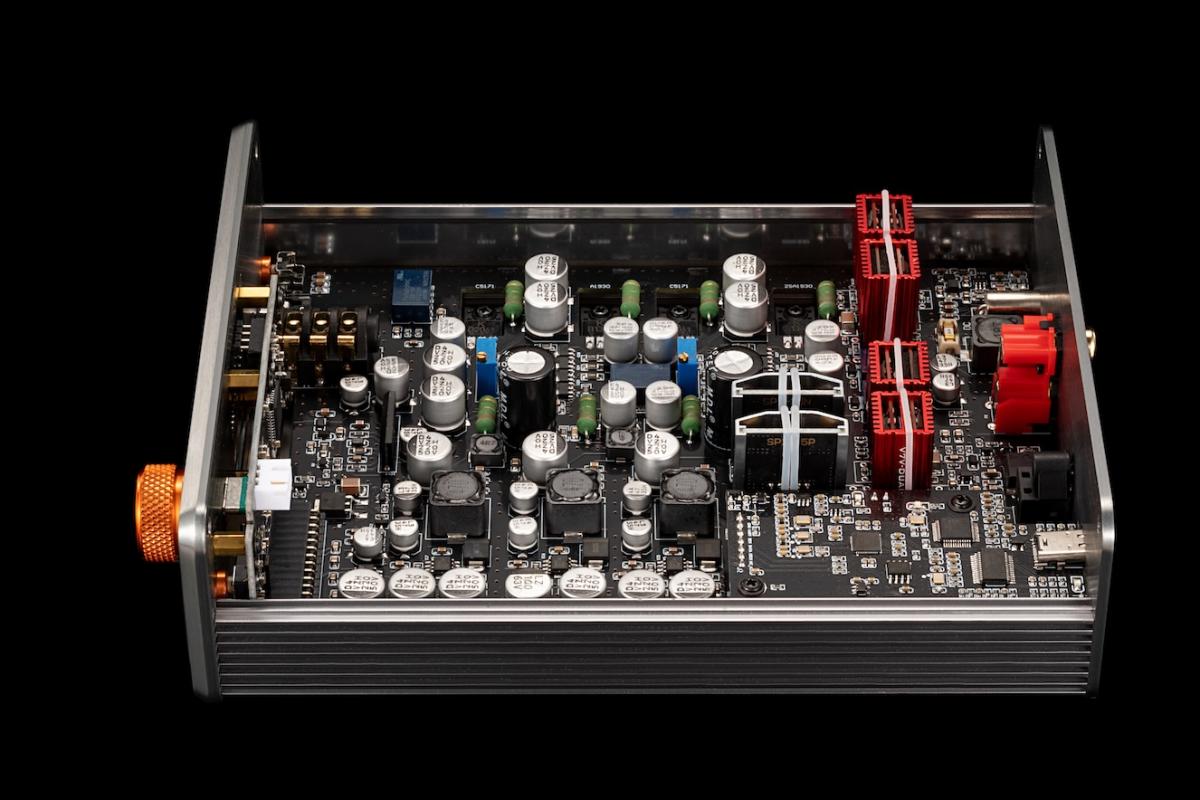

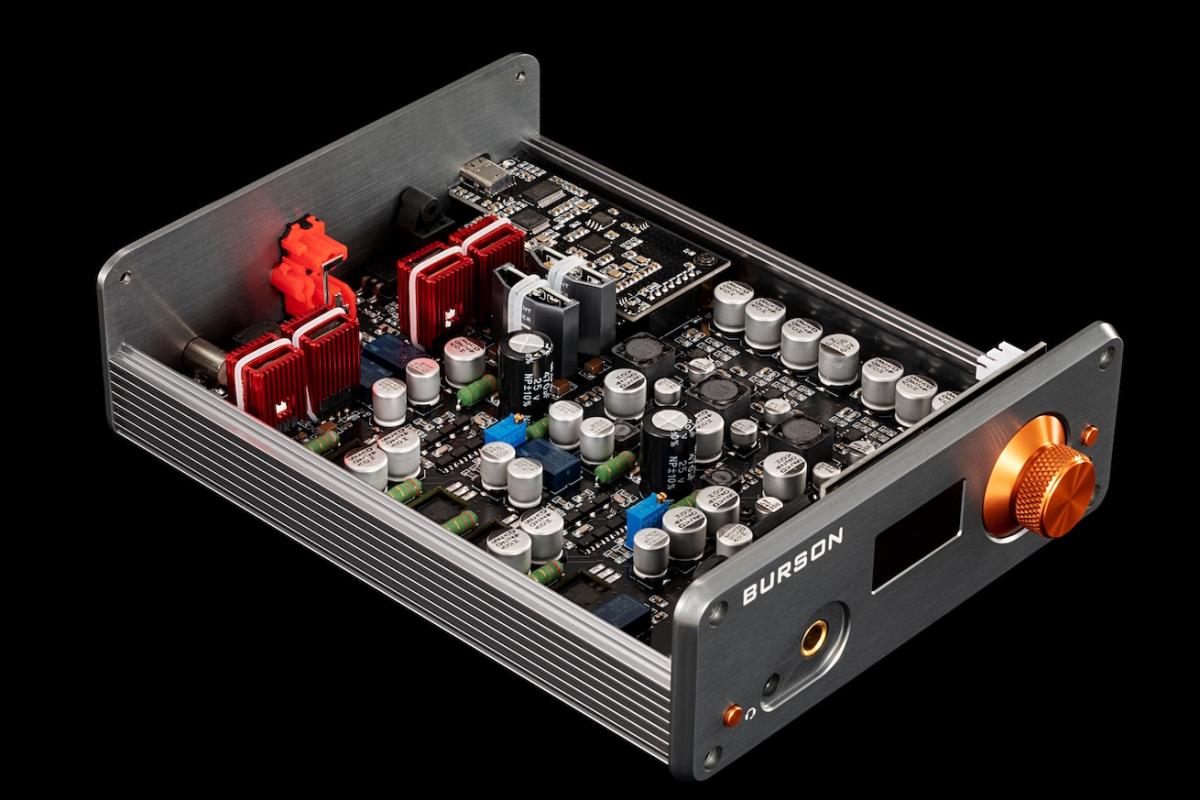

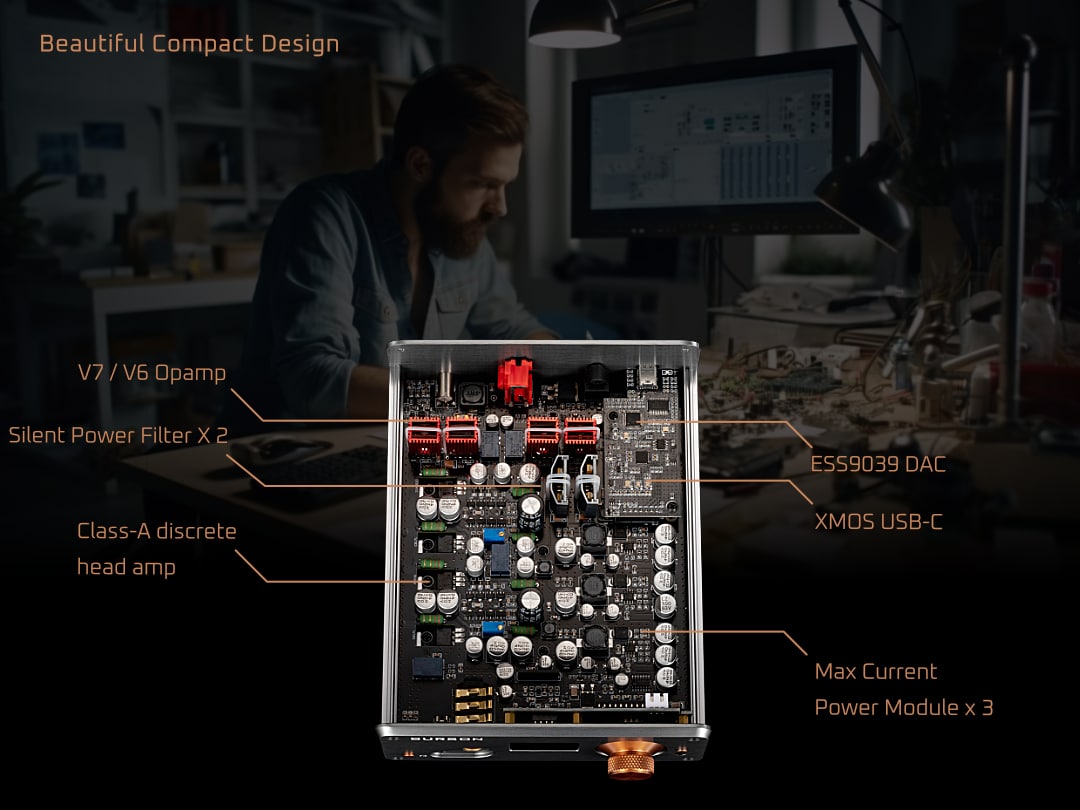

The Playmate 3 is designed for endless upgradability, ready to elevate your listening experience! Its signature sound comes from Burson’s discrete opamps, while Silent Power Modules deliver pristine power filtering. Want even more power? Add the Super Charger or Fusion Core to amp up the energy! The Playmate 3 effortlessly adapts to your style, combining high performance with timeless sophistication.
A | B | C | D |
---|---|---|---|
Measurement | Package Content | ||
Input impedance: | 38 KOhms | Burson Playmate 3 | IC Opamps for warranty diagnostic use. |
Frequency response: | ± 1 dB 0 – 35Khz | ||
THD: | <0.002% | Versions | |
Output impedance (Head Amp): | <2 Ohm | Standard - NE5532 IC Opamps/ SP01 / 24V3A PSU / No Remote | |
Output impedance (Pre Out): | 15 Ohm | Deluxe - V7 Vivid Opamps / SP02 / Super Charger 3A / With Remote | |
General | |||

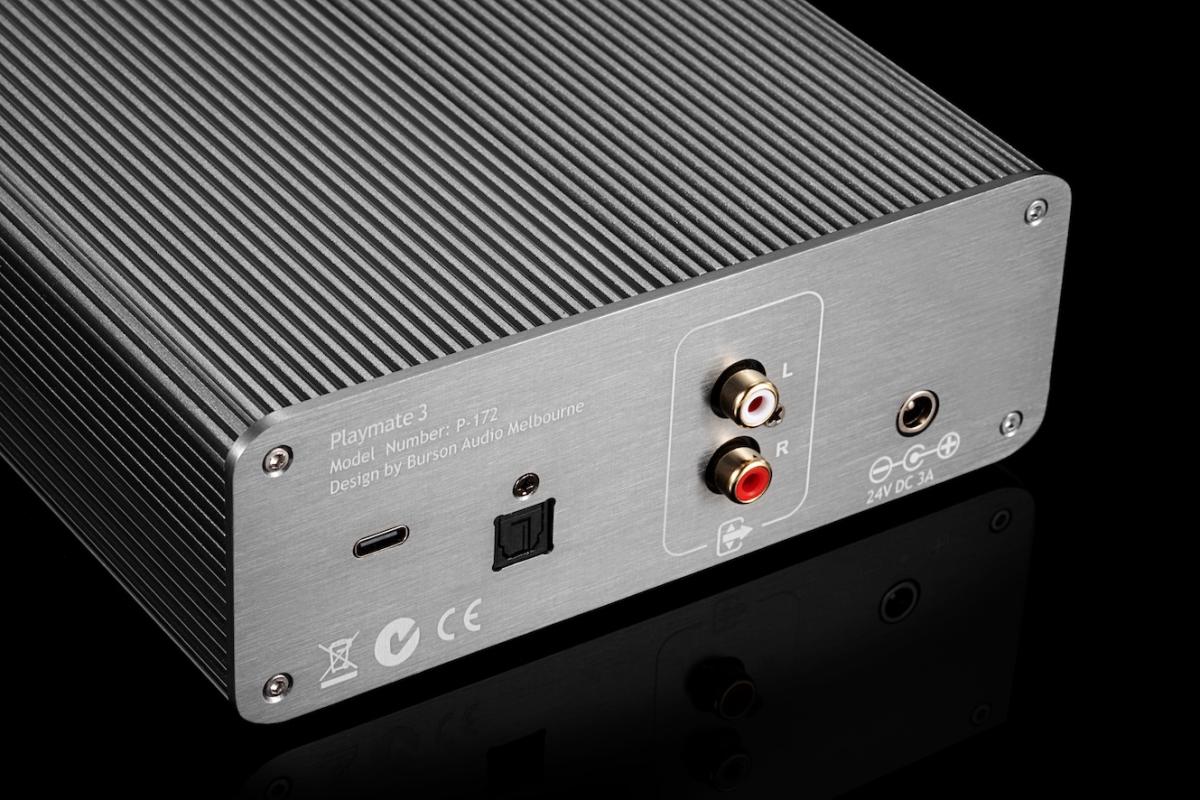

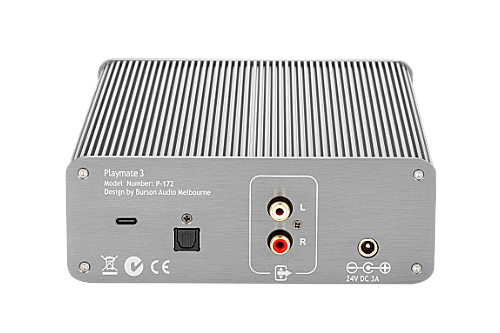

Inputs: | USB | Toslink | Coaxial | 3.5 AUX headset with Mic | Weight: | app. 3Kg |
Outputs: | Pre-Amp | DAC | Headphone Jack | Dimensions: | 190mm x 150dimm x 60mm |
Impedance (Headphone Jack) | Power | Signal to Noise Ratio | Separation |
16 Ohm | 3.5W | 96db | 99% |
32 Ohm | 2.5W | 97db | 99% |
100 Ohm | 600mW | 98db | 99% |
150 Ohm | 400mW | 96db | 99% |
300 Ohm | 150mW | 95db | 99.50% |
DAC Spec | XMOS USB Spec | ||
Channel Separation: | 128 dB @ 1KHz, 121 dB @ 20KHz | Desktop OS: | Win XP, 7, 8, 10 Mac OSX |
THD+N: | 0.0018% @ 1KHz, 0dBFS | Mobile OS: | iOS* & Android (OTG support) |
PCM & DXD Support: | PCM ≤ 768kHz up to 32bits | ||
Native DSD: | Native DSD 64 / 128 / 256 / 512 | ||
DSD over PCM: | DoP64 / DoP128 / DoP256 | ||
Asynchronous Isochronous |
