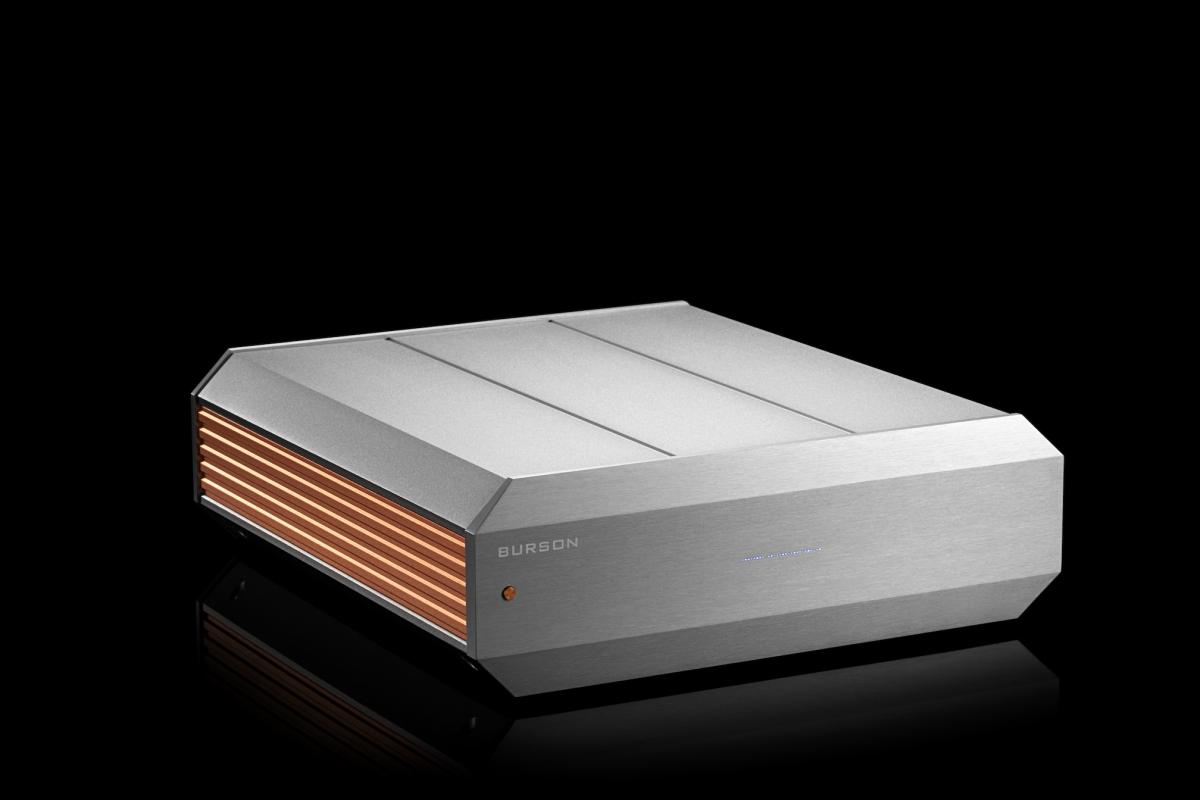

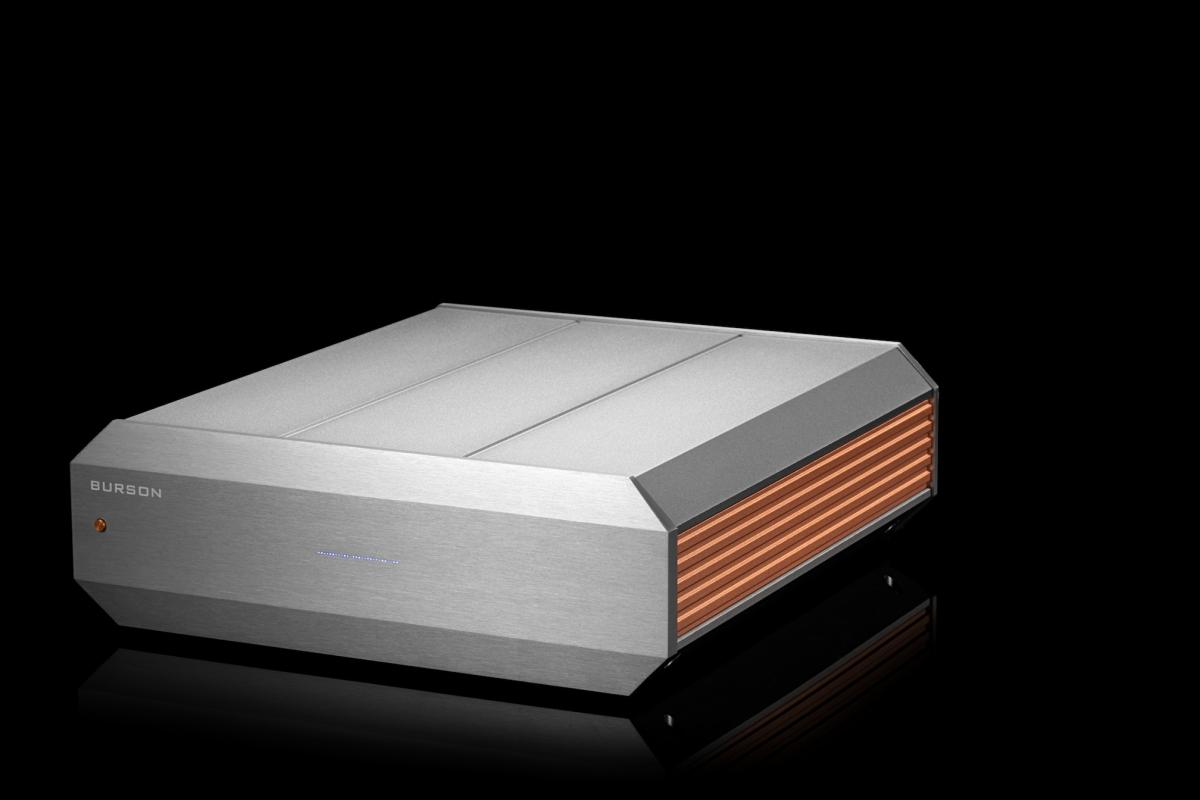

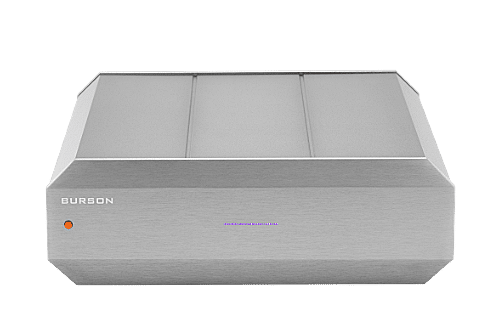

The 200W, Class-AB, High-Current Monoblock.
For 15 years and counting, “Timekeeper” has been Burson’s ongoing R&D project, advancing power amp performance with technological breakthroughs. The Timekeeper Voyager monoblock, with its GaN Fusion Core, Silent Power Modules, and V7 opamps, is here to redefine audio amplification!
The Sound of High-Current.
Higher idling current ensures transistors operate in their most linear region, reducing distortion. However, it stresses the power supply, increases heat dissipation, and raises production costs, making amplifiers larger and heavier with bulky heat sinks and big transformers.
Since higher idling current doesn’t boost output power, most manufacturers avoid highlighting it.

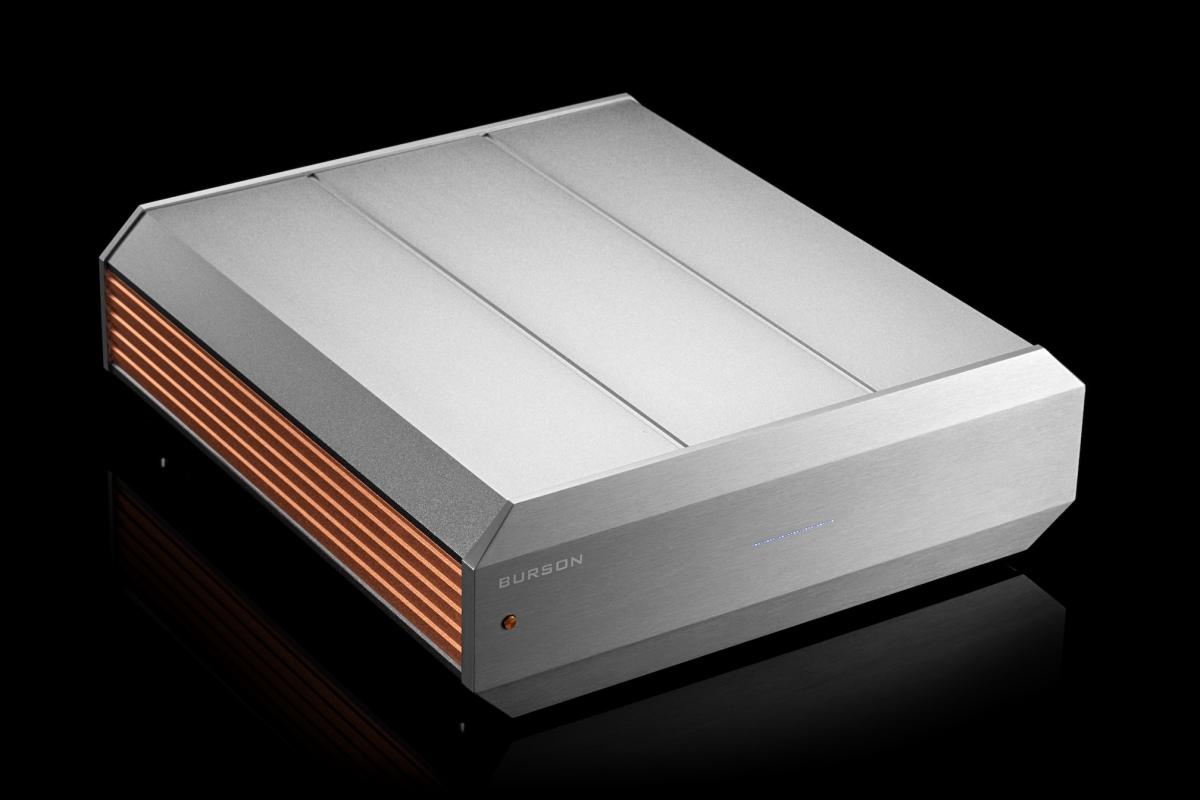

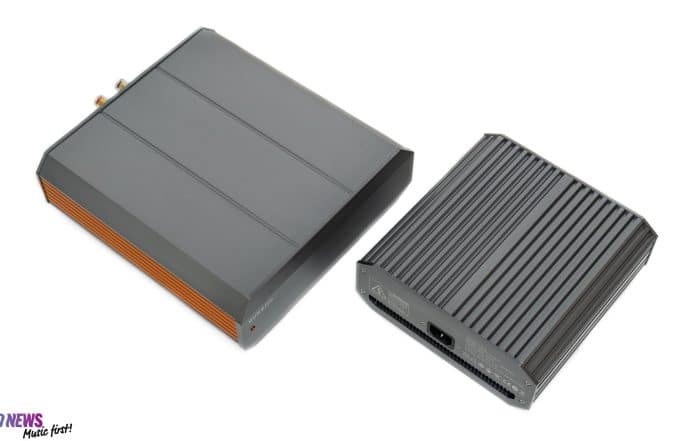

Drawing over 100W at idle, the Timekeeper Voyager delivers refrigerator-sized Class-AB amp performance in a sleek design. Our Cool Case eliminates the need for bulky heat sinks, and our Fusion Core replaces the humming coil transformer.

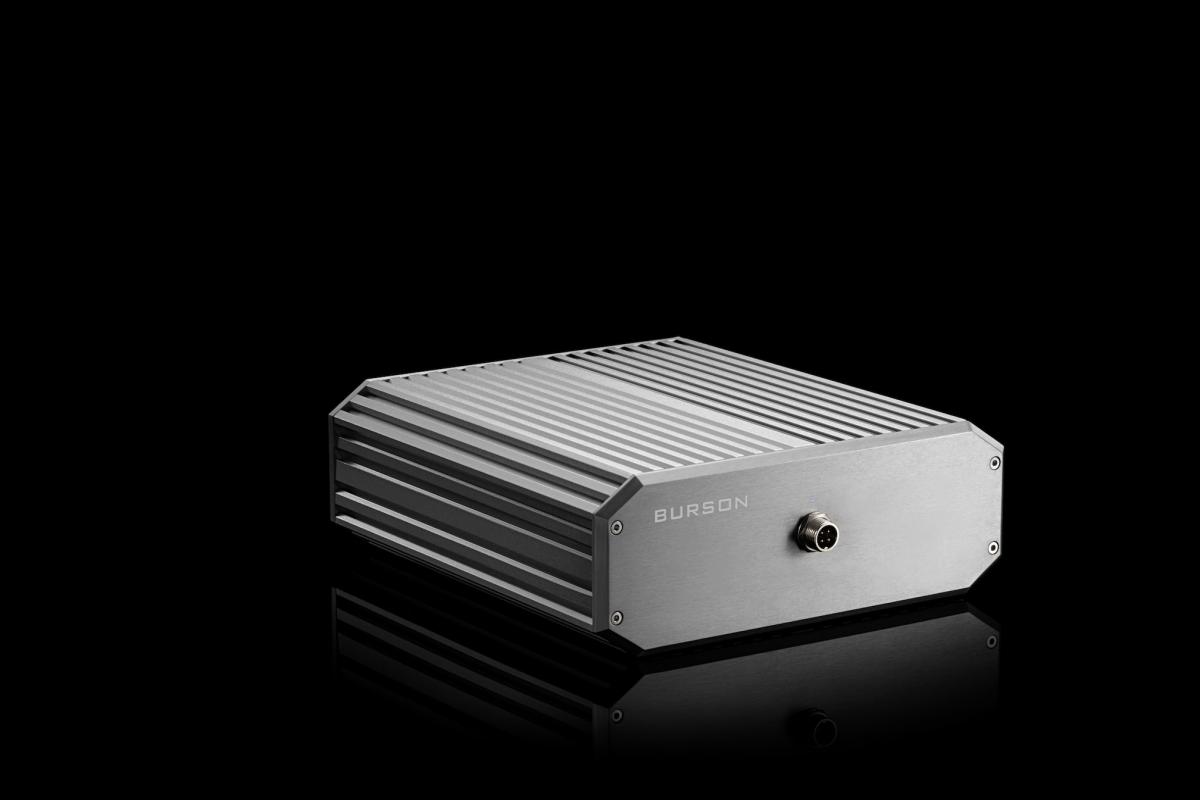

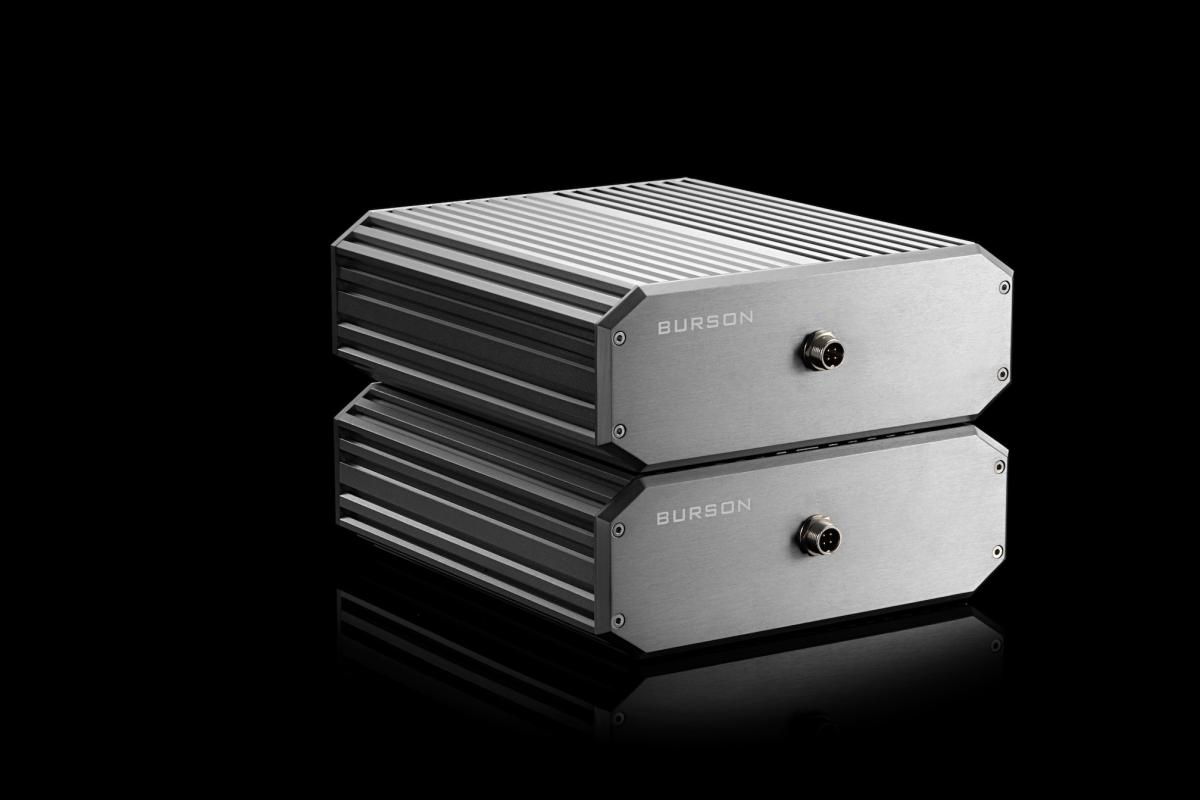

Fusion. Clean and limitless power!
Unleash the full potential of the Timekeeper Voyager with Fusion Core.

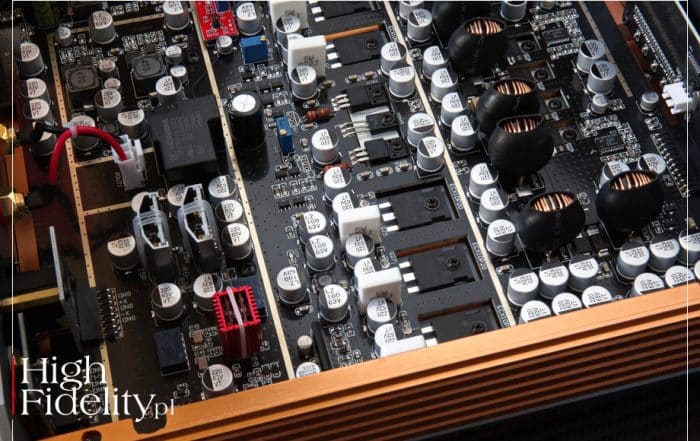

The Fusion Core uses GaN transistors that operate at frequencies ten times higher than traditional silicon MOSFETs, providing superior noise filtering. This advanced technology allows the Fusion Core to deliver ultra-low noise DC power with a robust current pump circuit, offering up to 480W. It is the audio industry’s most advanced power supply, with a matching sleek look.
Switching Frequency
Quieter than Battery Power.

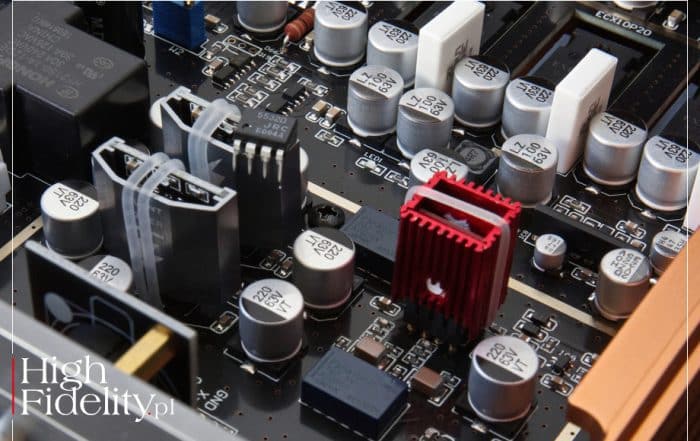

The voltage regulator is critical for filtering power supply noise, reducing voltage ripple, and providing overload protection. Despite its importance, it is often overlooked in audio circuitry design because it’s not part of the main amplification circuit.

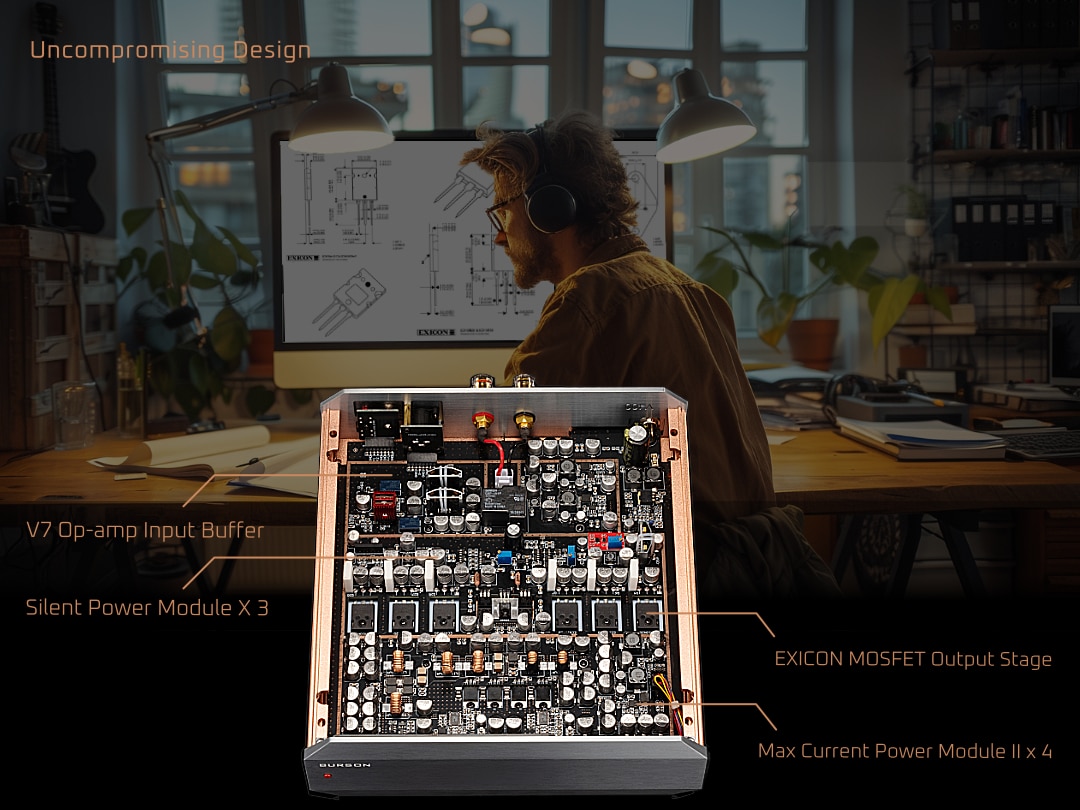

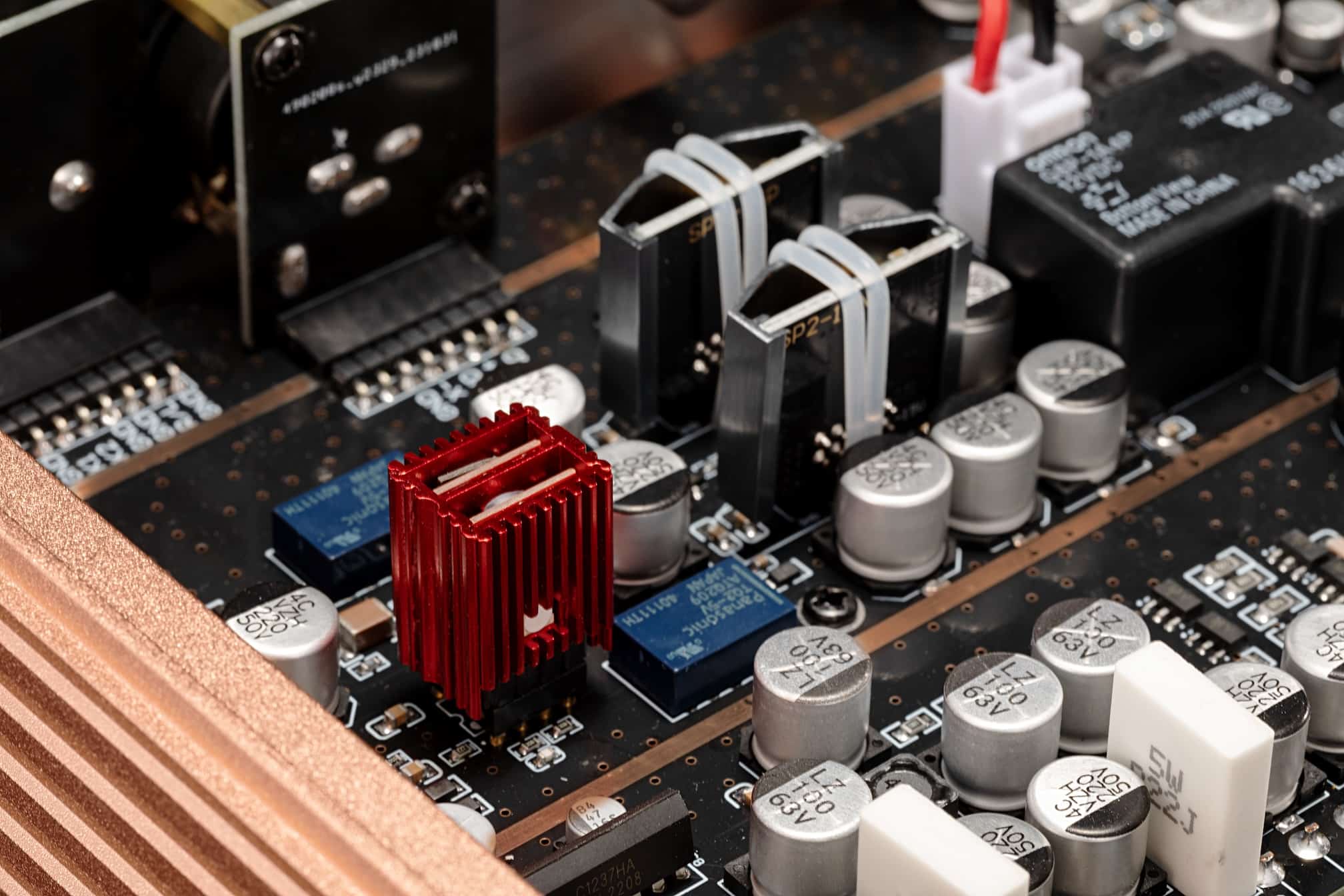

The Timekeeper Voyager features our second-generation Burson Silent Power Regulator Modules (SP2) with a noise rejection rate of 0.8uV, over 200 times lower than standard regulators. The SP2 ensures every micro detail in your music shines through with vivid clarity against a pitch-black backdrop. Ready to hear your favorite song for the first time?
Noise Level
The Buffer Stage that Perfects System Matching.
Say goodbye to system mismatch. The Timekeeper Voyager features a pure Class-A input buffer stage with the Burson V7 discrete opamp. Activating this adds 6 dB of gain to the input signal, ensuring perfect compatibility with any upstream device, from high-end DACs and preamps to laptops and smartphones.
The Most Idealistic Power Amp Design.

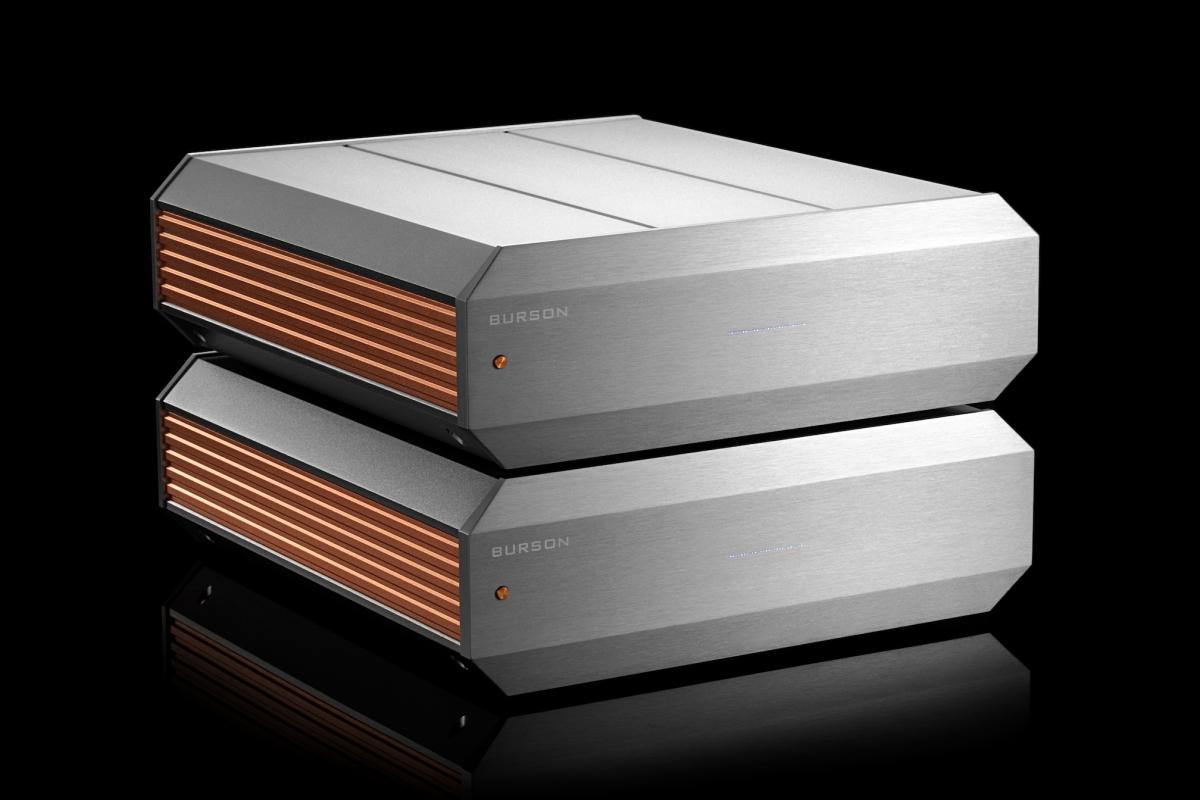

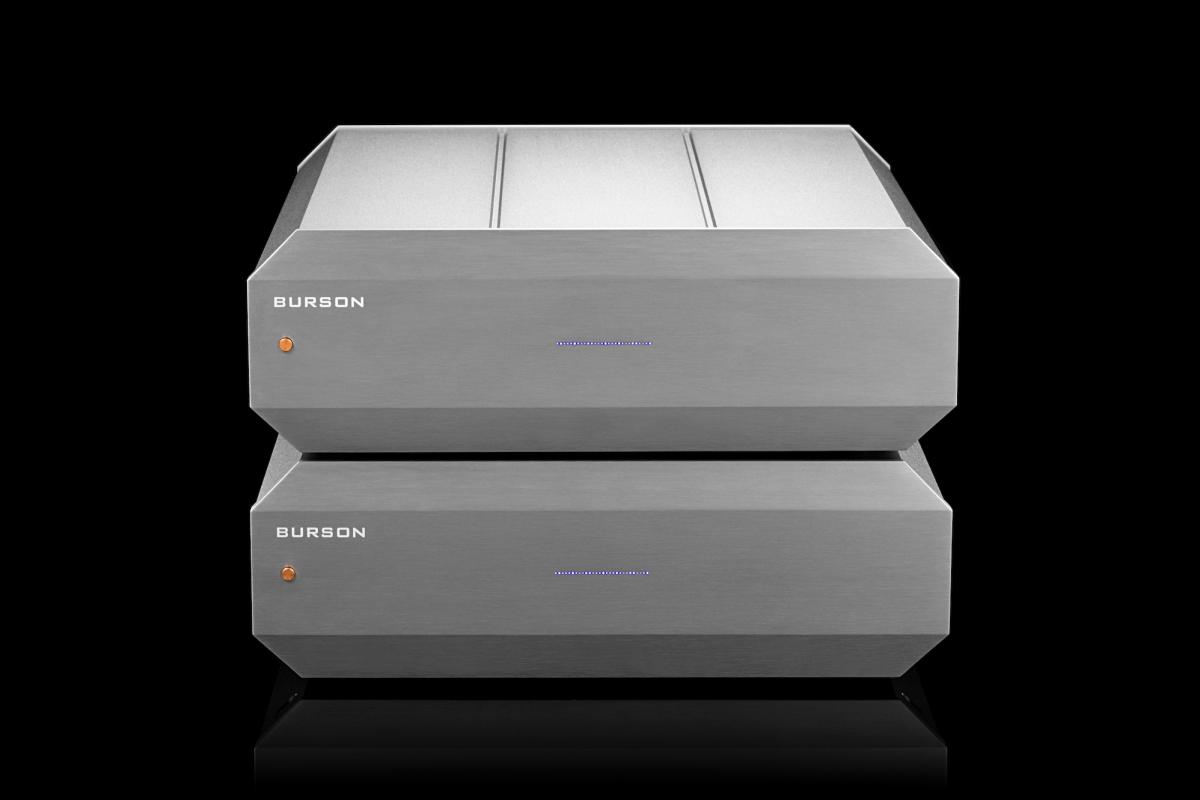

A monoblock (one amp, one channel) is the ultimate power amp design, completely eliminating cross-channel interference. This ensures a clean and accurate soundstage that makes every track pop with detail and depth.

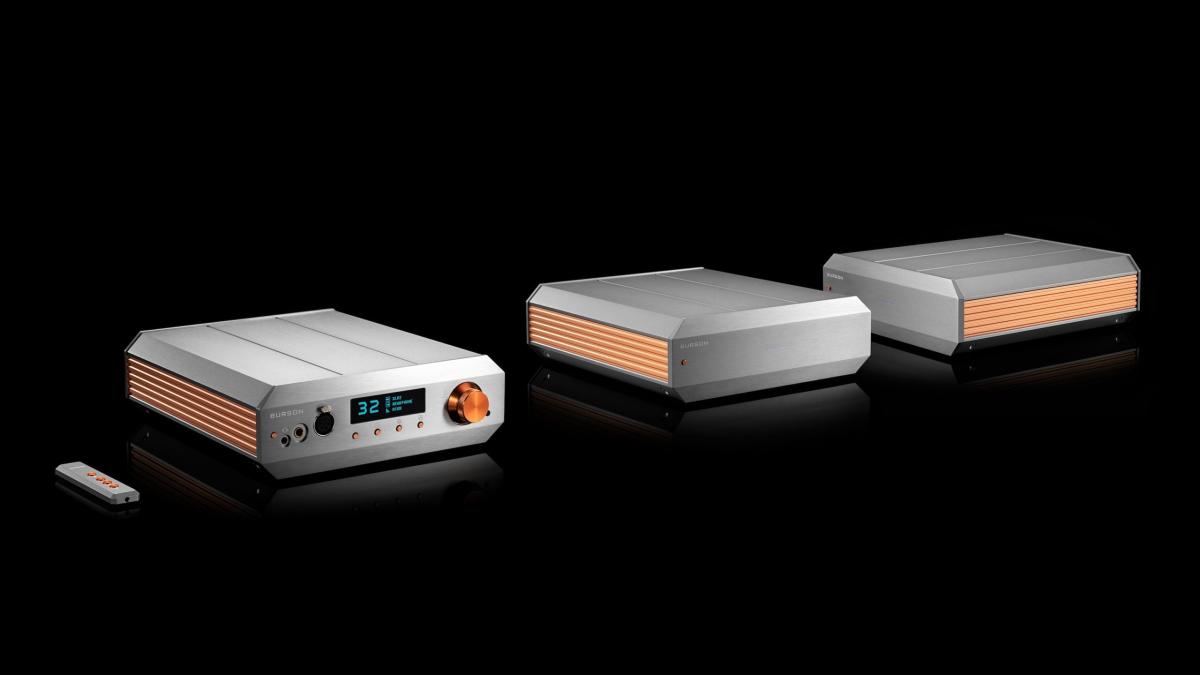

The Voyage, Enhanced.
Whether you’re a die-hard audiophile or just love listening to music, the Timekeeper Voyager is your perfect companion. It not only looks stunning but also delivers perfect sound! Experience rich vocals, sparkling highs, and dynamic playback that make your music truly pop. Get ready for an exhilarating journey through sound with the Burson Timekeeper Voyager!
A | B | C | D |
---|---|---|---|
Measurement | Package Content | ||
Input impedance: | Single-ended: 100 kΩ / Balanced: 200 kΩ | Standard Package: | |
Frequency response: | 20 Hz to 20 kHz | Timekeeper Voyager Monoblock X 2 (with V7 Vivid Pro Opamps and Silent Power 02 Modules) | |
THD: | <0.03% @ 1 kHz | Burson Super Charger - 32V/7A power supply | |
Output impedance | <0.015Ω, 20 Hz to 20 kHz | ||
Signal to Noise Ratio | 110db | Max Package: | |
Input Buffer On | 12dB XLR / 6dB SE | Timekeeper Voyager Monoblock X 2 (with V7 Vivid Pro Opamps and Silent Power 02 Modules) | |
Input Buffer Off | 0dB XLR / 0dB SE | Burson Fusion Core X 2 (32V/15A) | |
Standby Power | >1W | ||
Idling Power | 100W | ||
Output Power | 100W @ 8Ohm / 200W @ 4Ohm | ||
Gain | 29dB | ||
General | |||

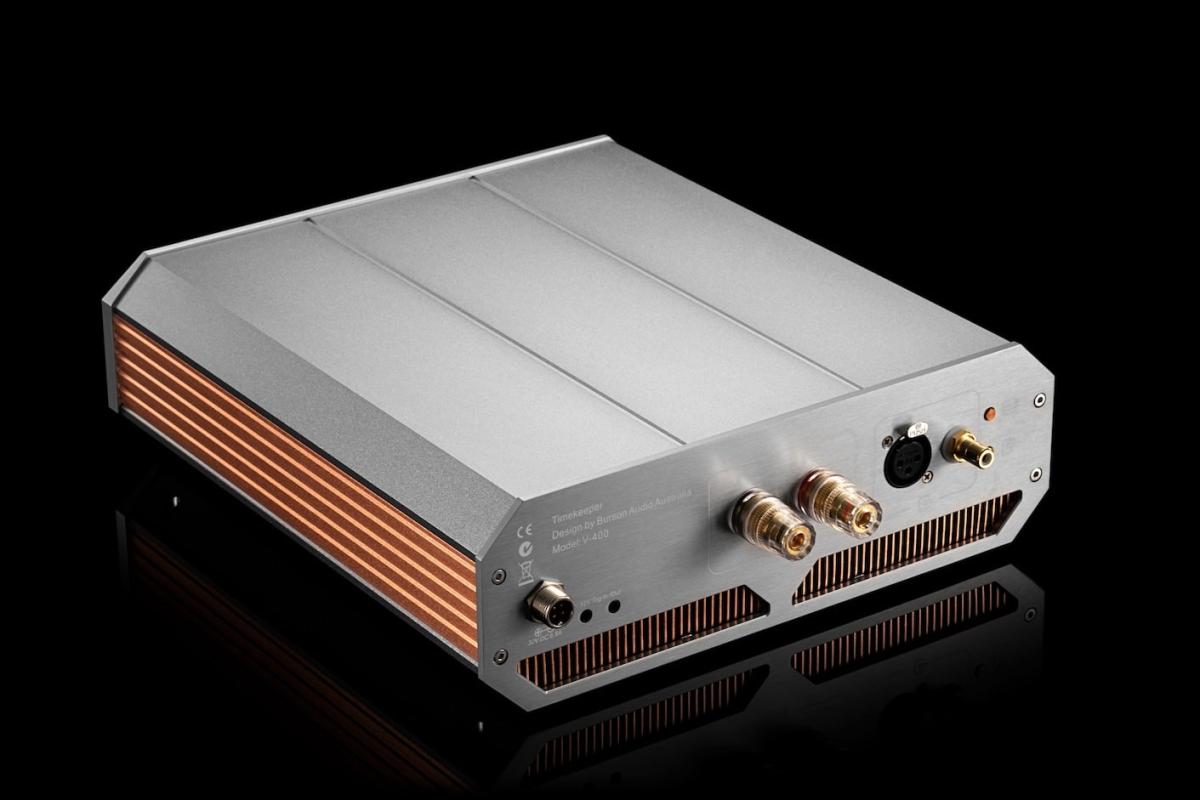

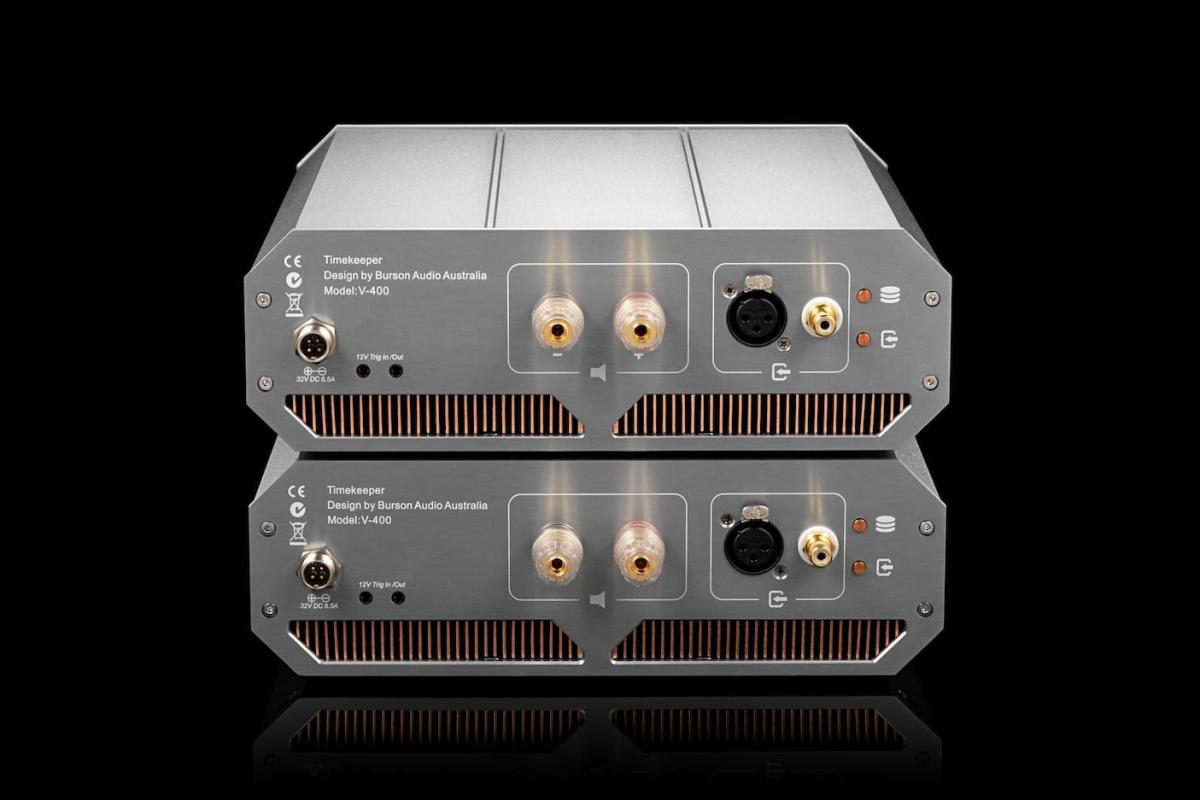

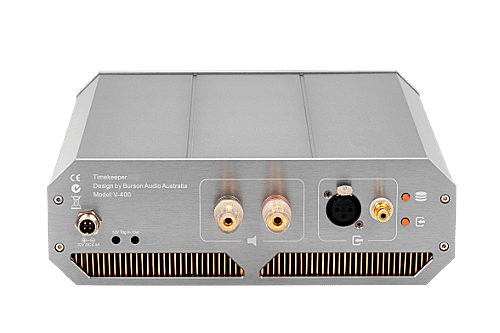

Inputs: | 1 single-ended RCA / 1 balanced XLR | Weight: | App. 7 kg (15.5Pounds) |

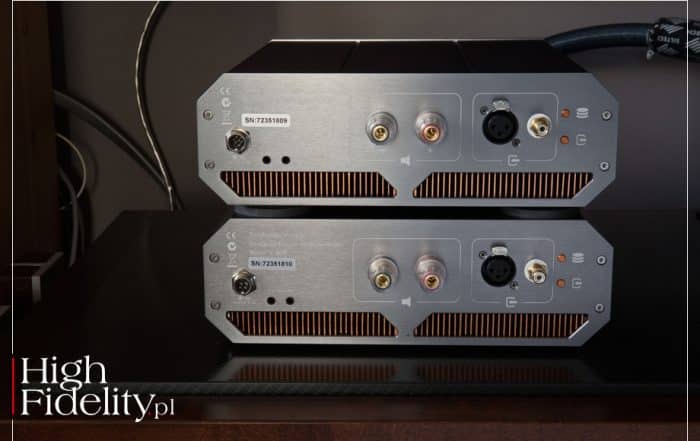

Outputs: | Speaker binding posts (+ / - ) | Dimensions: | 265 x 270 x 85 mm (10.2 x 10.6 x 3.3 inches) |
