A Hybrid Audio Opamp with SSV5 DNA
The inception of our latest product originated as a result of our partnership with a leading microchip foundry. Together we have created an integrated version of our V5 FET circuitry. In order to overcome many of the inherent limitations associated with ICs, we have externalized parts of its circuitry and completed those sections with high quality discrete components.
The newly developed Burson V5i is a hybrid audio opamp, which is both partially IC and discrete. It bears the sonic signature of its bigger brother, the V5 discrete opamp, considered by many as the reference in audio application.
Easy & Effective
When designing the Burson V5i, our goal was to create a product that was to manage. Similar to the size of a typical DIP8 opamp, the V5i is the easiest plug-in upgrade for any audio project. Starting at the price of $39.00 USD, the V5i is a fun upgrade with serious performance capabilities.
Unsurpassed Performance & Quality
It is said that we as humans can only hear up to 20 KHz; however, the new V5i has bandwidth of 50 MHz. In other words, you will not be able to hear all the micro details, but you will surely feel them. With the creation of the V5i, music will simply be more engaging and live like.
Holding fast to our tradition of elite service, the V5i is also covered under our Worldwide Lifetime Replacement Warranty. Here at Burson Audio, we maintain a high level of customer service with our commitment to design and quality.
Like the fully discrete SSV5, the V5i is fast, dynamic, and transparent. Music shines through a peach black background and a wide stage. The V5i pushes IC based audio opamp beyond its limitations and it is truly worthy of the Burson badge.
Here are three simple steps to find out if the Supreme Sound Opamp (SSO) will work for you.
- Identify the op-amp inside your component.
- Is it an 8-pin IC chip like the one below highlighted in red?
- Take note of the model number of the op-amp highlighted in yellow
- Take note of the pin-1 indicator with a half-cut circle highlighted in blue
- Determine if you need a dual-SS op-amp or a single-SS op-amp
The SS Opamp is directly replaceable with the following opamps
AD823, AD823AN, AD8066, AD8620, AD712, AD827, C4570, JRC4556AD, JRC4580, JRC5532, JRC5532D, JRC5532, LF353, LM4562, LME49860, LM833N, LME49720, MUSES8920, NE5532, NEC4520, NEC4570, NJM2068D, NJM2114, NJM2214D, NJM4558, NJM4558D, NJM4560, NJM5532, NJM4558P, OP275, OPA1612, OPA2277PA, OPA2132, OPA2134, OPA2604, JRC4558, RC4558D, RC4558P, TL052, TL072, MUSES01, MUSES02, MUSES8820, MUSES8920, MUSES8832, BA15532
NE5534, JRC5534, LT1122, TL071, OPA134, OPA627, AD811,AD829, AD844, OPA604, AD8610, AD711, AD797, LME49990, LME49710
If your op-amp isn’t listed above let us know the model number and details of your project and we’ll be happy to help you.
1. Make sure you have the right SS Op-Amp
– V5-OPA-D = dual Version Op-Amp = suitable to replace dual version chip opamps
– V5-OPA-S = single Version Op-Amp – suitable to replace single version chip opamps
2. Plug it in the right direction
Align the half moon marking on the PCB or IC socket to the half moon cut out on the SS Op-Amp enclosure (refer to photo below)
3. Register the SS Op-Amp for a life-time of warranty
Only by completing this simple registration via this link (https://www.bursonaudio.com/warranty-diy/), will your SS Op-Amps be covered for life.
Please note that not following the first 2 steps above will certainly destroy the SS Op-amp, such cases will not be covered by our warranty.
Optional Tweaks for your SS Opamp
V5 SS Opamp Data Sheet

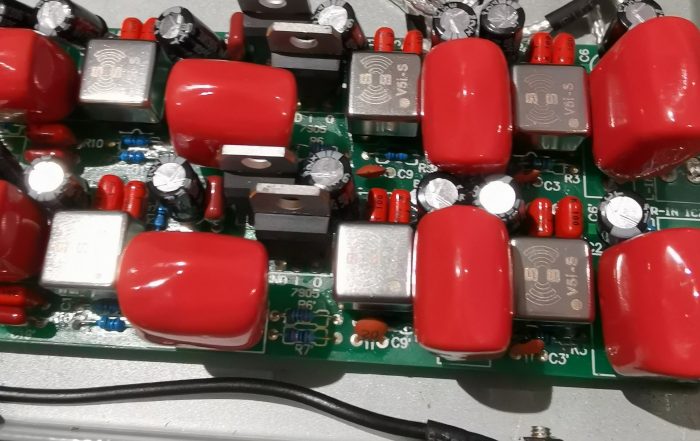

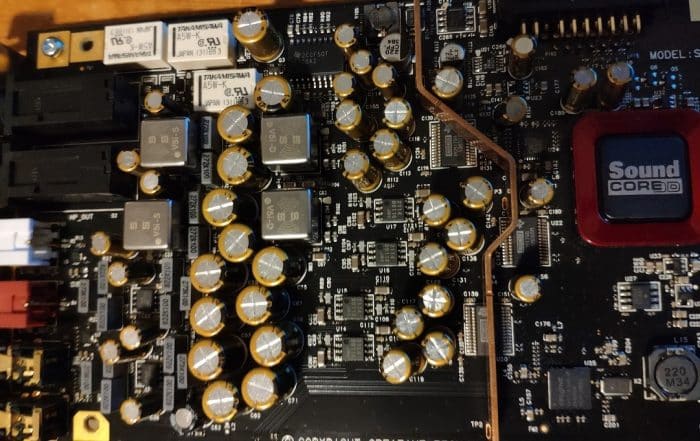

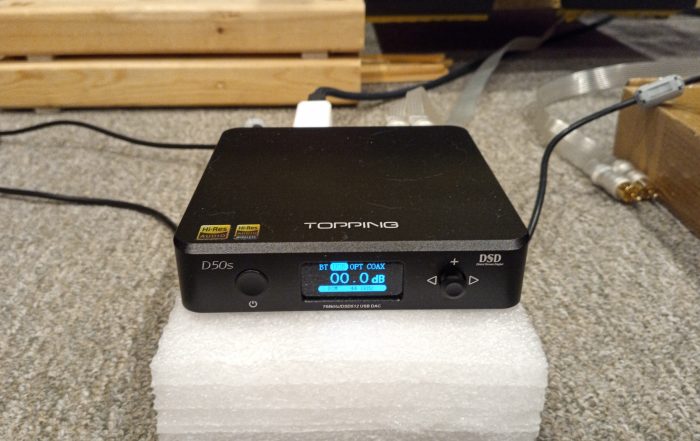

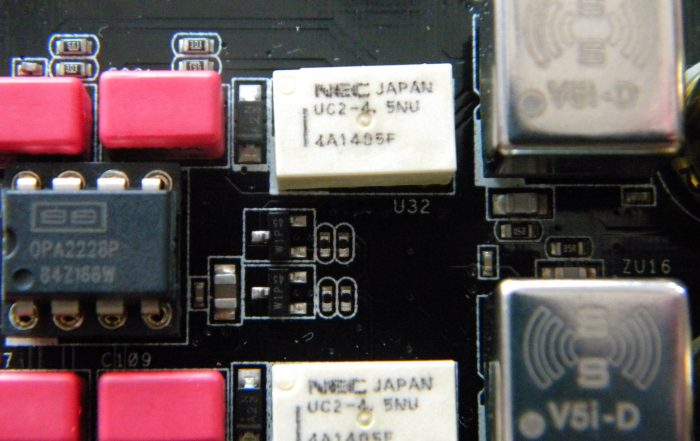

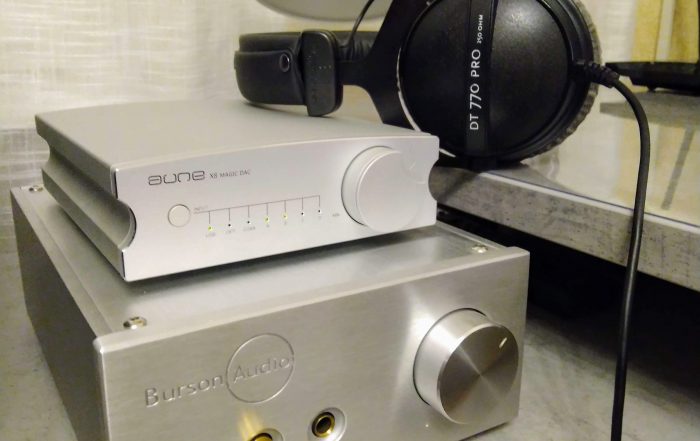

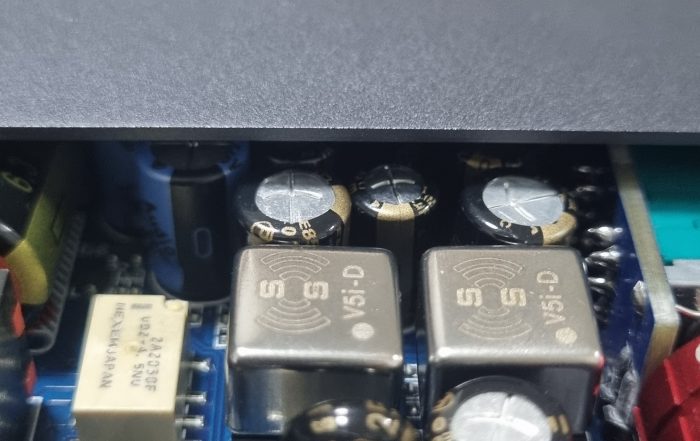

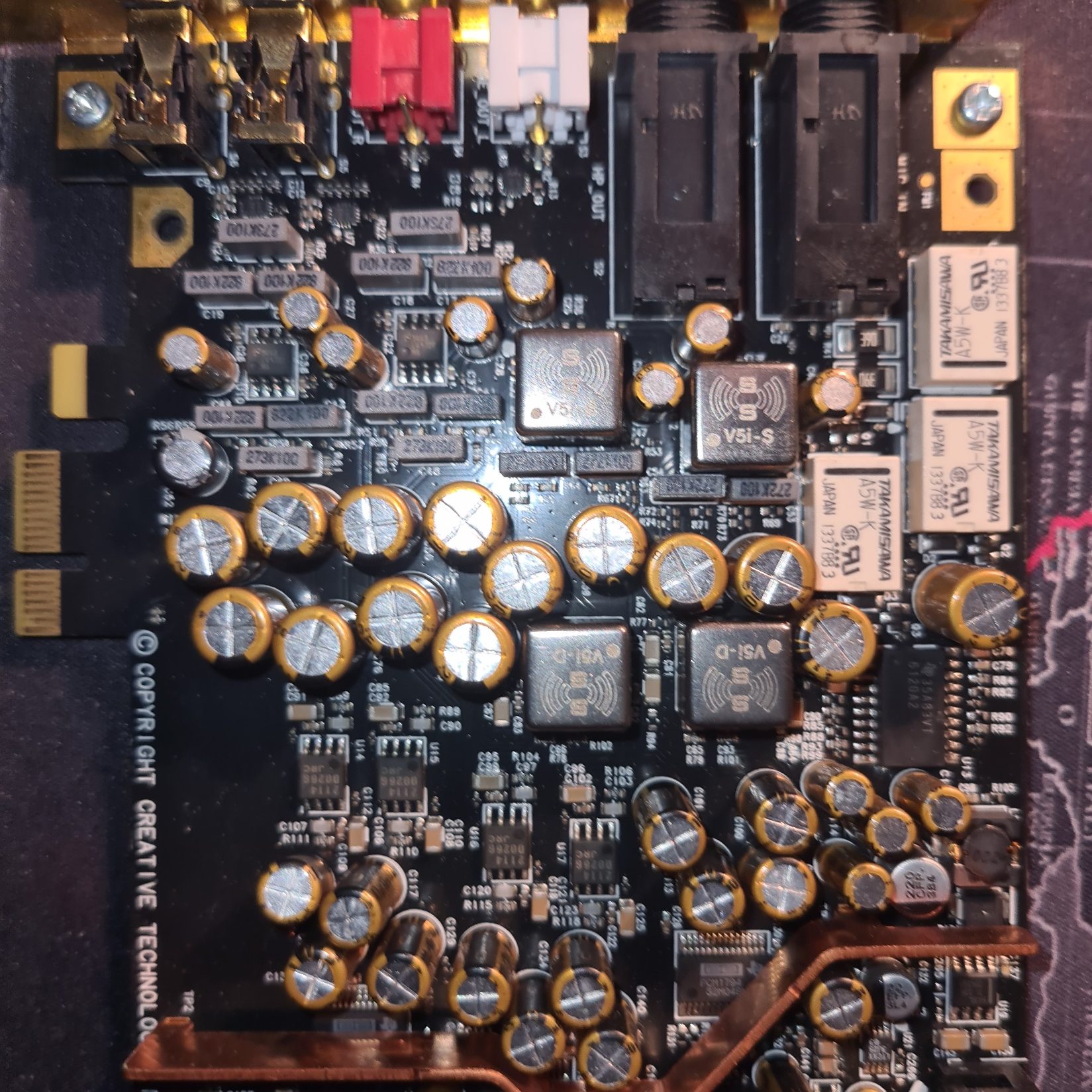

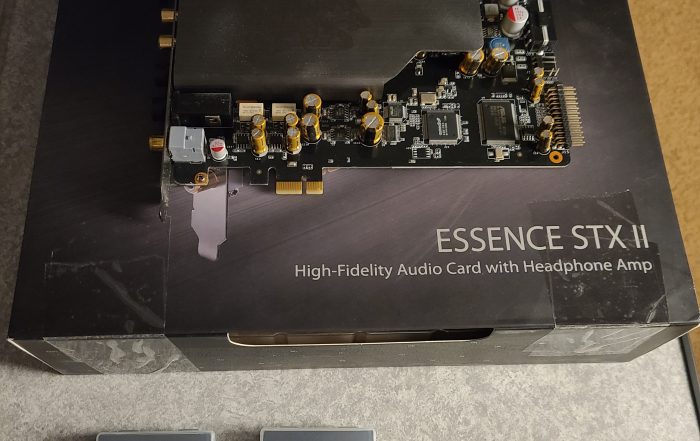

Featured Customer Projects
