Layered to Perfection
The V7 opamp is meticulously constructed using up to eight layers in its PCB design. This approach strategically separates the signal path, grounding, and shielding into distinct layers. Although this method is more costly, it’s the ideal approach for designing analog amplification circuits. As a result, the V7 is not only more compact and practical but also features a shorter, optimized signal path. Additionally, its enhanced design provides superior protection against airborne interference.”

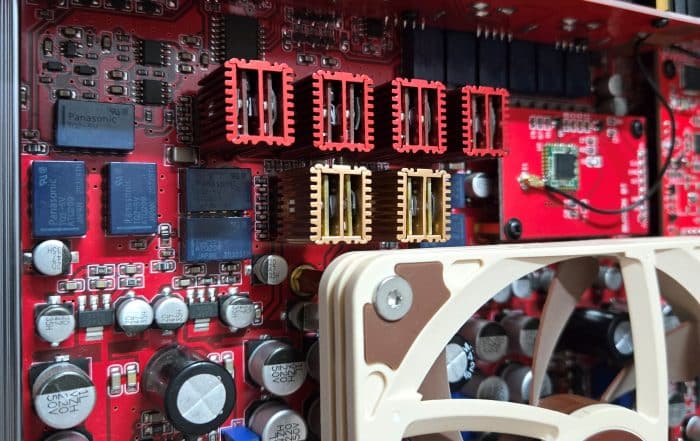

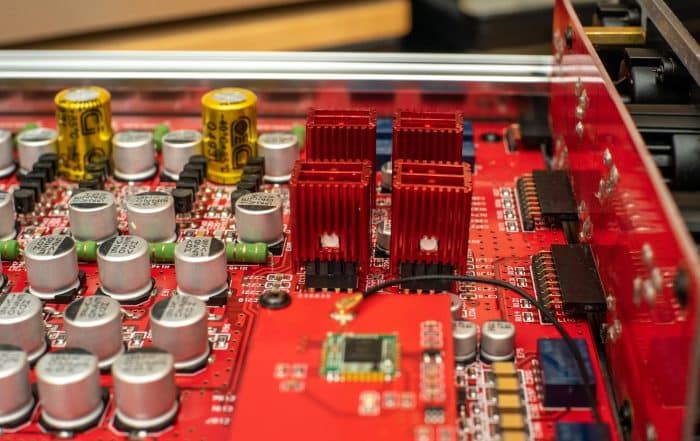

The Max Current Heatsink
The V7 is engineered to operate at high temperatures. To manage this, it is equipped with a new high-density aluminum shell. This shell effectively dissipates heat from each layer of the PCB into the air, while also safeguarding the sensitive components within.
This functional and sleek design allows the V7 to work with a higher idling current, enhancing audio quality and improving stability.
Vivid VS. Classic
The V7 Vivid stands out for its dynamism, clarity, and accuracy. It is an ideal choice for recording engineers who prioritize absolute precision. Particularly recommended for the initial output stages of DACs (Digital-to-Analog Converters), the V7 Vivid excels where transparency is most valued.
On the other hand, the V7 Classic can be likened to a perfect seasoning that enhances a meal. It features a completely redesigned output stage, addressing the limitations of its predecessor, the V6 Classic. The V7 Classic now matches the ultra-low noise level of the V7 Vivid, while maintaining the beloved intimate vocals and sparkling highs that fans of V6 Classic appreciate. Additionally, it offers improved dynamics and accuracy in the lower frequencies, striking an ideal balance between enjoyment and seriousness.
Sonic Quality Comparison
Unsurpassed Quality
Like our passion for audio, our opamps are built to last a lifetime. Every Burson Opamp around the world, from the V1 to the V7, is covered by a lifetime warranty — an offering that no other opamp manufacturer dares to match. This, along with the reverse voltage protection, demonstrates our commitment to quality and our care for the investments of our customers and manufacturing partners.
Component selection and matching are not only critical for sound quality but also for safety. Burson uses only the finest components, which are painstakingly matched and tuned in a temperature-controlled environment that simulates real-world operations. Only after this rigorous process do they earn the Burson badge.
Dual Opamp | Single Opamp |
---|---|
AD823, AD823AN, AD8066, AD8620, AD712, AD827, C4570, JRC4556AD, JRC4580, JRC5532, JRC5532D, JRC5532, LF353, LM4562, LME49860, LM833N, LME49720, MUSES8920, NE5532, NEC4520, NEC4570, NJM2068D, NJM2114, NJM2214D, NJM4558, NJM4558D, NJM4560, NJM5532, NJM4558P, OP275, OPA1612, OPA2277PA, OPA2132, OPA2134, OPA2604, JRC4558, RC4558D, RC4558P, TL052, TL072, MUSES01, MUSES02, MUSES8820, MUSES8920, MUSES8832, BA15532 | NE5534, JRC5534, LT1122, TL071, OPA134, OPA627, AD811, AD829, AD844, OPA604, AD8610, AD711, AD797, LME49990, LME49710 |
Contact us for support if your op-amp is not listed above.
Applications | V5i | V6 | V7 |
---|---|---|---|
Battery Powered Headphone Amp, DAC, DSP | Yes * | No | No |
Computer Sound Card | Yes | Yes | Yes * |
Car Amplifier | Yes * | Yes | Yes |
LP Phono Stage: MC / MM | Yes * | Yes (MM) | Yes (MM) |
AM / FM Tuner, Reel to Reel Tap Player | Yes * | No | No |
CD / DVD / SACD/ Network Player | Yes | Yes | Yes * |
Pre Amp / Headphone Amp/ Integrated Amp / Power Amp | Yes | Yes | Yes * |
Pro Audio Mixer / Tone Control / Pre Amp | Yes | Yes | Yes * |
* = Recommended |
Opamp Model | Design | Min Voltage | Max Voltage | Current Consumption | Unity Gain Stable | Reverse Voltage Protection |
---|---|---|---|---|---|---|
V5i | Partial Discrete | ±5V / 10VDC | ± 16V / 32VDC | Single 5mA | Dual 10mA | Yes | No |
V6 Vivid | Fully Discrete | ±3.5V / 7VDC | ± 16.5V / 33VDC | Single 7mA | Dual 14mA | Yes | Yes |
V6 Classic | Fully Discrete | ±3.5V/ 7 VDC | ± 16.5V / 33VDC | Single 7mA | Dual 14mA | Yes | Yes |
V7 Vivid | Fully Discrete | ±4V / 8 VDC | ± 16V / 30VDC | Single 18mA | Dual 35mA | Yes | Yes |
V7 Classic | Fully Discrete | ±4V / 8 VDC | ± 16V / 30VDC | Single 18mA | Dual 35mA | Yes | Yes |
